Battlefront is one of the best-optimized games right now, strictly looking at the graphics-versus-framerate output across multiple GPUs. The game fronts brilliant shading, lighting, and post-FX, leveraging what appears to be some form of PBR (though we're not positive) to create a more realistic aesthetic without hammering draw calls and polys.

That was all tested on an X99 platform, though, so we figured it'd be worth a look at Battlefront's fluidity across our (still limited) CPU suite. We benchmarked Battlefront with the Intel lineup (G3258 to i7) and some of AMD's FX CPUs, including one APU + dGPU combination. Anything not present here means one of two things: We either don't have it or it is presently being used for another benchmark, which accounts for quite a few CPUs, given game launch season.

Other Battlefront Content

This previous content may interest you:

Note on Dual-Core CPUs & Work-Around Fixes

The Pentium G3258 worked reasonably enough during the game's beta phase, but seems to have been dropped from official support with Battlefront's launch. In order to get the dual-core CPU working, which is now technically below spec, users must use .dll injection utilities to force dual-core operation in Star Wars Battlefront. Without injecting the correct .dll files, Battlefront launches with a black screen and locked 200FPS output, producing zero video to the user. The game actually looks like it's crashed or frozen, but an alt-F4 or alt-tab will show full operation of Windows.

To force G3258 support, we injected a dual-core dll through a process detailed in this article. We are unsure at this time if this risks bans from anti-hacker software. The injection produces a stable game that supports dual-core CPUs, though it is obviously a sub-optimal test environment that could potentially introduce variance or non-linear comparison, given the changed test environment for this CPU. Still, without the fix, we are unable to test the G3258 at all. This makes the .dll injection a part of the game's requirements, in our eyes, when it comes to the G3258, and thus creates a real-world use case scenario.

Test Methodology

We tested using our updated 2015 Multi-GPU test bench, detailed in the table below. Our thanks to supporting hardware vendors for supplying some of the test components.

The latest AMD Catalyst drivers (15.11.1) were used for testing, including the Battlefront patch. NVidia's 358.91 drivers were used for testing, including the Battlefront patch. Game settings were configured to "Ultra," "High," and "Medium" presets at 1080p, 1440p, and 4K resolutions.

Each scenario was tested for 30 seconds identically, then repeated three times for parity.

We used the "Survival" mission on a set course (shown in our video). This was chosen for its replicability and reliability during test. This benchmark is not comparable to our previous Battlefront benchmark, which used Tatooine as the bench course. This updated benchmark used Endor, which we found to be an intensive test environment, as the benchmark platform.

Average FPS, 1% low, and 0.1% low times are measured. We do not measure maximum or minimum FPS results as we consider these numbers to be pure outliers. Instead, we take an average of the lowest 1% of results (1% low) to show real-world, noticeable dips; we then take an average of the lowest 0.1% of results for severe spikes.

Platforms used:

GN Z97 Bench Name Courtesy Of Cost
Video Card

GTX 980 Ti Reference

NVIDIA $643
CPU Intel i7-4790K CPU
Intel i5-4690K CPU
Intel i3-4130 CPU
Intel G3258 CPU
CyberPower
GamersNexus
GamersNexus
GamersNexus
$340
$210
$105
$50
Memory 32GB 2133MHz HyperX Savage RAM Kingston Tech. $300
Motherboard Gigabyte Z97X Gaming G1 GamersNexus $285
Power Supply NZXT 1200W HALE90 V2 NZXT $300
SSD HyperX Predator PCI-e SSD Kingston Tech. TBD
Case Top Deck Tech Station GamersNexus $250
CPU Cooler Be Quiet! Dark Rock 3 Be Quiet! ~$60

AMD AM3+ Bench

GN Test Bench 2015 Name Courtesy Of Cost
Video Card

GTX 980 Ti Reference

NVIDIA $643
CPU AMD FX-8370
AMD FX-8320E
AMD
AMD
$200
$132
Memory 32GB 2133MHz HyperX Savage RAM Kingston Tech. $300
Motherboard ASRock Extreme9 990FX GamersNexus $190
Power Supply NZXT 1200W HALE90 V2 NZXT $300
SSD HyperX Predator PCI-e SSD Kingston Tech. TBD
Case Top Deck Tech Station GamersNexus $250
CPU Cooler Be Quiet! Dark Rock 3 Be Quiet! ~$60

AMD FM2+ Bench

GN Test Bench 2015 Name Courtesy Of Cost
Video Card

GTX 980 Ti Reference

NVIDIA $643
CPU AMD A10-7870K AMD
$128
Memory 32GB 2133MHz HyperX Savage RAM Kingston Tech. $300
Motherboard Gigabyte Z97X Gaming G1 GamersNexus $285
Power Supply NZXT 1200W HALE90 V2 NZXT $300
SSD HyperX Predator PCI-e SSD Kingston Tech. TBD
Case Top Deck Tech Station GamersNexus $250
CPU Cooler Be Quiet! Dark Rock 3 Be Quiet! ~$60

Our test discipline mandates disabling any power management functions, including AMD's APM and Intel's C-States. This helps ensure that test results are accurate from test-to-test, and eliminates the chance of variable clock throttling that could impact results in ways difficult to measure.

We used the same DDR3 memory for all platforms (X99 uses DDR4, but is not present in these tests). The memory is configured to DDR3-2133 XMP profiles, ensuring that memory will not impact results on platforms which cannot natively host >2133MHz RAM.

Windows deployment is clean between each configuration. We use a local, custom-built pXe server to ghost images onto drives before testing. Each image is built for specific CPU architectures and chipset drivers are installed post-image. Video drivers are not included on these images; we push drivers down from a local server via custom scripting, ensuring perfect, clean installation of the most stable drivers. In the case of video drivers, we will forgo stable drivers for beta drivers when present.

There is one SSD per bench, ensuring complete isolation of driver and OS/image deployment so that there is no conflict between CPU or platform changes. Forgoing this step risks BSOD failures.

There is one methodological limitation: Because we used one GTX 980 Ti ($643), rather than multiple GPUs, settings which begin to bottleneck the GPU will decrease the profundity of CPU limitations. This does not happen until higher settings, but we still get a clean hierarchy of CPUs.

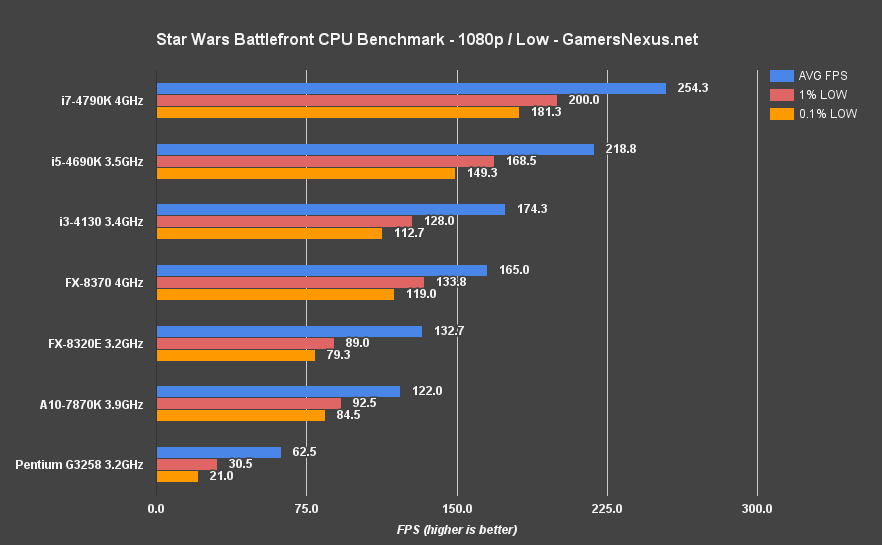

SW Battlefront CPU Benchmark – 1080p Low – G3258 vs. i3-4130, i5-4690K, FX-8320E

battlefront-cpu-bench-1080-low

1080p / low (preset) was tested strictly to create a visible delta between CPUs, the hope being that we'd effectively eliminate the GPU as a potential bottleneck. This shows us at what point the CPU will bottleneck the GPU, an important factor to consider in component purchasing. The game is limited to 200FPS by default, but we unlock it with gametime.maxvariablefps 0.

The i7-4790K holds a ~15.8% lead over the i5-4690K ($210), operating at 0.5GHz slower and with fewer threads, and keeps higher low frametimes. The lead is irrelevant at these settings, of course, but the next few charts will analyze the delta's staying power through higher settings.

The i3-4130 ($105) is the next slowest CPU on our bench, pushing 174FPS average (~22.5% delta vs. i5-4690K) and 128FPS 1% lows (~27% delta).

AMD's first CPU tested on our bench was the FX-8370 ($200, non-E CPU), which pushed 165FPS AVG, a 5.3% loss against the i3-4130. We suspect this to be resultant of Intel's IPC advantage. The FX-8370 retains higher 1% low and 0.1% low framerates than the i3-4130.

Moving to the FX-8320E ($132), we finally start approaching a performance region where the difference could show itself at higher settings. The FX-8320E, a lower power CPU, drives 132.7FPS to the display when coupled with the 980 Ti, and has a larger gap in 1% lows than the FX-8370. The A10-7870K APU (similar to the $75 X4 860K, which we don't have) holds superior low framerates to the FX-8320E across all our tests, but not by a noticeable amount at 1080/low.

The G3258 ($50) is brushing up against undesirable space, given the .dll injection requirements and dismal 1% & 0.1% low framerates, both of which fall well below the 60FPS target framerate for this shooter.

SW Battlefront CPU Benchmark – 1080p Medium – i3-4130, i5-4690K, FX-8370, etc

battlefront-cpu-bench-1080-medium

The trends are all about the same here, though the gaps are closing as we approach higher GPU workloads. The i5 vs. i7 disparity has closed to 4.6% (from nearly 16%) and the FX-8370 runs 3.4% behind the i3-4130.

Intel's G3258 is around where it's floor is across all settings, it appears, though we're still dipping down marginally through each test.

SW Battlefront CPU Benchmark – 1080p High – i3 vs. i5, i7, FX, & A10 APU

battlefront-cpu-bench-1080-high

Here's where the numbers really start tightening as other bottlenecks are created in the system. We're testing all the way through 'high' and 'ultra' anyway, despite hitting GPU limits, because we figure it represents a more realistic scenario. If you've got a GTX 980 Ti, you're probably going to try running closer to Ultra. Without moving to more powerful multi-GPU configurations, there is ultimately a limit to how visible the CPU delta is.

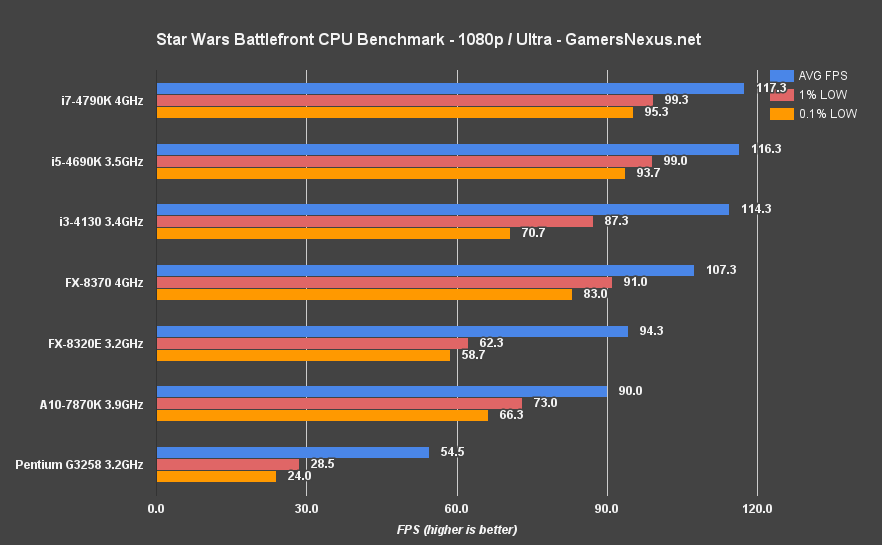

SW Battlefront CPU Benchmark – 1080p Ultra – i3 vs i5, i7, FX, & More

battlefront-cpu-bench-1080-ultra

Now we're hitting ceilings.

The i7-4790K's 16% advantage at “low,” strictly when coupled with a single 980 Ti, diminishes to just 1FPS AVG (0.86%) at “Ultra.” The takeaway: If you've got a single-GPU configuration of equal or less power than the 980 Ti, the i5 vs. i7 disparity is effectively irrelevant to your Battlefront gaming. The i5-4690K is the better buy in this instance, assuming the rather simplistic viewpoint of someone playing just one game, but multi-GPU configurations may see a larger benefit of the i7. We did not test this due to the limited install count of Battlefront.

The gap between the i3 and i5 is similarly ineffective in Battlefront – again, given this config – but the 0.1% lows are substantially lower (27.99% delta).

The FX-8370 non-E is also an acceptable performer for Battlefront at Ultra.

Remember that the FX-8370 and i3-4130 did show considerable performance disparity against the i5 and i7 at lower settings. If you're running multi-GPU setups – and anyone doing so would likely already have a higher-end CPU, lest the system constantly be throttled – then moving closer to the i7 is the best choice for mitigating bottlenecking.

The FX-8320E is still throttling our GPU at Ultra, imposing a 21.8% bottleneck when compared against the i7-4790K. The G3258, which was already limited, is now reasonably below 60FPS.

Conclusion: The Best Gaming CPU for Star Wars Battlefront

Intel's Pentium G3258 CPU, despite its solid $50 price-point, is not a great processor for Battlefront – that much is clear. Between forcing dual-core support (which may not work forever) and the heavily throttled performance, it would be ideal to opt for a higher-end CPU – an i3, 860K, or 8320E ($132) would all be much better choices. The G3258 will still run Battlefront if forced, just expect some choppiness of frame delivery pursuant to the lower 1% and 0.1% metrics, even at “low.”

The 860K, not present on this test or in our lab (but we can assume placement near the 7870K), would be a good buy for lower-end GPU setups that demand a tighter budget. The AMD 860K ($75) buy would be strongly recommended over Intel's G3258.

The game runs fairly well across all CPUs, assuming a single-GPU setup similar to our build, but you'd want to gravitate toward the i5-4690K the best value AVG, 1%, and 0.1% performance. Multi-GPU configurations would do well to push toward the i7 ($300), something that should be considered especially when attempting to output 144Hz in other games.

An i3- CPU and FX-8370 (or 8350) would be reasonable performers for Battlefront; if that's what's in your rig, forge ahead.

Battlefront isn't too intensive overall, and that shows in these tests. Avoid dual-core CPUs like the G3258, then favor GPU combinations that reasonably match the CPU's market positioning, and everything will run fairly well.

For users looking at Skylake, the performance is fairly similar to Haswell (even slower, in a few instances). The i7-6700K will perform similarly to the i7-4790K in these benchmarks. The i5-6600K will perform similarly to the i5-4690K.
