AMD A10-7870K APU Review & Benchmarks vs. CPU + dGPU Solutions

By Published August 03, 2015 at 2:25 pm
  •

Additional Info

  • Component: CPU
  • Original MSRP: 150
  • Manufacturer: AMD

AMD A10-7870K R7 Performance vs. G3258, 760K + 250X – CSGO

AMD's APUs have seen a retargeting of late toward eSports titles, which famously front lower-fidelity graphics in favor of highly performant gameplay. To this end, the 7870K is marketed most heavily as an affordable solution for the likes of CSGO and DOTA2, two wildly popular Valve eSports titles.

7870k-igp-csgo

For these tests, we had CSGO's settings maxed-out (anti-aliasing disabled) to high / very high settings. The resolution was 1920x1080, as in all tests conducted on the 7870K.

It is clear that the lone A10-7870K is capable of maintaining a playable average FPS >60, though we see hits to performance in the 1% lows (30FPS) and 0.1% lows (13FPS). Coupling a lower-end CPU (G3258, 760K, 860K – not listed) with a low-end GPU still outputs superior performance, though requires a greater power envelope. There are some games where a lower-end CPU combination proves sub-optimal, as we'll find momentarily, but CSGO benefits greatly from a dGPU. The game is not particularly processor-intensive.

Intel's HD4600 IGP outputs impressive performance, having generally straggled behind AMD's integrated graphics solutions. The IGP is just shy of the desired 60FPS range. AMD designates a significantly larger portion of its die to the GPU components of its APUs, though, and is something that should be reflected in our CPU-targeted charts.

AMD A10-7870K R7 Performance vs. G3258, 760K + 250X – DOTA2

We tested DOTA2 with the sliders set to “medium” and other qualities as defined above.

7870k-igp-dota2

The 7870K runs just shy of 60FPS in this ESL tournament match. The scene tested represents a worst-case scenario, with several heroes and mobs on screen simultaneously. There is a substantial performance improvement from the CPU + cheap dGPU solutions.

As in other tests, the 760K exhibits performance gains over the G3258 strictly in the territory of the low metrics, where the limited threading capabilities of Intel's dual-core solution show themselves.

AMD A10-7870K R7 Performance vs. G3258, 760K + 250X – GTA V

Set to “normal” across the board and with AA disabled, GTA V does what we've seen it do in the past – it kills the G3258. This chart reinforces our dedication to measurement of frame variance over the period of testing.

7870k-igp-gtav

Despite a chart-topping average FPS performance, the G3258 ($65) + R7 250X ($96) get destroyed in the 0.1% lows, something we've seen consistently when testing modern, heavily threaded titles. The dips are shown through semi-frequent (a minimum of twice per 30-second period) and hard “drops” in framerate. This is a good example of where a 760K or modern 860K, despite lower average performance, would actually be the better processor.

But we're not reviewing either of those CPUs today.

The A10-7870K is, plainly put, entirely unplayable when faced with GTA V even at its lowest settings. At 1080p, it is simply not realistic to expect a fluid framerate in GTA V on AMD's best APU.

AMD A10-7870K R7 Performance vs. G3258, 760K + 250X – GRID

GRID: Autosport was set to “medium” for IGP tests, but changed for CPU testing.

7870k-igp-grid

The 7870K is just shy of a preferred 60FPS, but is playable at 45FPS with its impressively consistent 1% and 0.1% lows. Dipping to “low” settings would allow playable gaming with GRID: Autosport. GRID is a title that was heavily supported by Intel at launch, featuring items like self-shading smoke and other Intel-only features, and expresses significantly bolstered performance on the G3258 over the 760K.

AMD A10-7870K CPU Performance vs. G3258, 760K, i3-4160 – FireStrike Physics

The FireStrike Physics test is almost entirely loaded on the CPU, making for a solid baseline analysis tool of CPU rankings from raw gaming-related processing. The combined test merges physics and graphics processing elements to hammer both the CPU and GPU.

7870k-cpu-physics

The numbers are represented as FPS output of the physics processing passes. Note that all tests used a GTX 980 Ti as the AIB.

The 7870K performs well for an APU, but is only marginally better than AMD's significantly cheaper CPU-only 760K / 860K solutions. This is because the 860K processors are effectively the same part as the 7870K, but ship with the IGP disabled.

AMD A10-7870K CPU Performance vs. G3258, 760K, i3-4160 – Shadow of Mordor

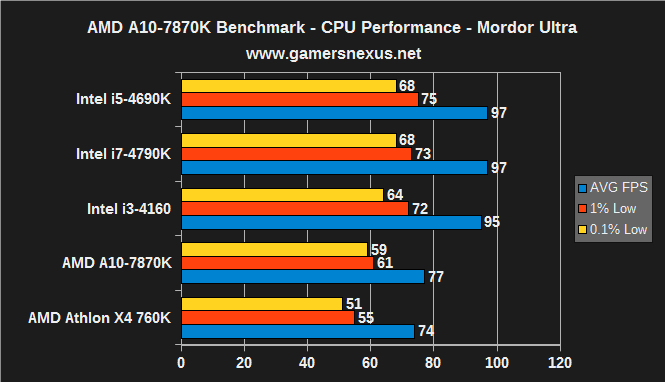

There's some CPU-bottlenecking going on in Shadow of Mordor, as shown below:

7870k-cpu-mordor

The i3-4160, a more CPU-heavy ~$116 solution, has a ~20 AVG FPS gain over the A10-7870K when both are equipped with a GTX 980 Ti.

AMD A10-7870K CPU Performance vs. G3258, 760K, i3-4160 – Metro

Metro: Last Light heavily favors CPUs with higher thread counts, something we'll show in an unrelated forthcoming test.

7870k-cpu-mll

The i7-4790K + GTX 980 Ti show supremely advantaged 1% low and 0.1% low performance over Intel's own 4690K, a highly performant CPU with hyper-threading disabled. This performance hit extends through the i3-4160 and A10-7870K, both coupled with the same GPU.

The i3-4160 is advantaged again over the A10-7870K, with a ~20 AVG FPS gain. When both are equipped with a dGPU, the A10-7870K shows no reasonable performance gain over a CPU-only solution from AMD.

AMD A10-7870K CPU Performance vs. G3258, 760K, i3-4160 – GTA

Performance in GTA V was measured using two types of settings – very high / high with “advanced graphics” disabled, and the same, but with advanced graphics enabled.

7870k-cpu-gtav

7870k-cpu-gtav-high

The G3258 fails miserably with higher settings for GTA V, producing unplayable lows at “Very High” and crashing with advanced graphics. The 7870K bottlenecks hard compared to the i7 and i5 CPUs (which seem to hit a GPU bottleneck at ~67FPS).

The game is playable using a dGPU and 7870K with no advanced graphics enabled. The CPU is still a large bottleneck to the GPU when compared against Intel's Core-series offerings, including the i3.

AMD A10-7870K CPU Performance vs. G3258, 760K, i3-4160 – GRID

GRID, again, shows a heavier Intel bias than some other test titles.

7870k-cpu-grid

The 7870K, G3258, and 760K are all guilty of bottlenecking the GTX 980 Ti (and so is the i3-4160, though to a lesser degree at 87FPS vs. 65FPS AVG).

AMD A10-7870K Conclusion

7870k-cpu-2

First: Note that we are analyzing the A10-7870K strictly from a gaming perspective. Results in professional applications and video media consumption were not recorded or tested.

We can come to a few very clear, hard conclusions with the A10-7870K APU; those conclusions are split between “will buy a dGPU” and “will not buy a dGPU.”

For users who intend on using a mid-range-or-better video card with their CPU, there is no reason to purchase an A10-7870K. It is outperformed by the cheaper i3-4160 ($116) in all walks of gaming. We can effectively rule-out the A10-7870K in this use case.

When looking at lower-end video cards, like the deprecated R7 250X at ~$96, it still makes more sense to couple the solution with either an AMD CPU-only Athlon X4 or Intel G3258. Looking over the charts, it becomes clear that the G3258 struggles hard with some new games when it comes to 1% and 0.1% performance, making the 860K ($75) a wiser purchase going forward. An R7 250X or similar + G3258 would run a total of ~$161, or $11 more than the retailer-wide A10-7870K pricing for significantly more versatile performance. An 860K + R7 250X would cost closer to $170, which is getting to be a bigger difference – but still worth the $20.

It isn't until we eliminate video card purchases that the A10-7870K becomes appealing, and that's somewhat expected. The current $150 price-point of the A10-7870K means that it's dangerously close to CPU + GPU pricing at the low-end. For users building ultra-portable boxes in impossibly small enclosures – I can think of very few that exist without AIB support – an APU makes more sense as it removes the requirement of an expansion card. If the pricing of the A10-7870K falls and stays at the current one-day sale price of $120, we can make a much stronger case for the purchase of a single-unit APU over the dGPU + CPU combo; that price drop would create a ~$30 to $50 gap in build cost, which becomes substantial to budget builders.

We're impressed with the performance of the 7870K's IGP, but struggle to recommend the device to most gamers at its current pricing given the CPU + GPU price similarity. It is advisable to avoid the G3258 in scenarios involving heavily threaded games (like GTA V), so we'd then suggest an 860K + low-end GPU instead; if that ~$20 to $30 price climb is too big, the 7870K makes sense. If the 7870K were to fall and stay at the ~$120 mark, we would confidently recommend the unit for ultra-budget builds. This also helps (albeit marginally) lower the power envelope.

DOTA2 and CSGO performance is strong enough that only a 7870K will suffice in unmodded scenarios, if you really want to avoid a dGPU.

- Steve "Lelldorianx" Burke.
