Official NVIDIA GTX 1060 Specs, Price, & Release Date

By Published July 07, 2016 at 9:00 am
  •

NVidia's new GP106-equipped GeForce GTX 1060 has been announced as of today, alongside partial specs, a release date, and some software. The GTX 1060 will utilize nVidia's new GP106 GPU, a Pascal rendition which cuts down on SM and CUDA core count from preceding GP104 chips (GP104-400 and GP104-200, detailed in our GTX 1080 and GTX 1070 reviews).

The GeForce GTX 1060 uses the same Pascal architecture, with the same improvements we've already discussed heavily. That includes 16nm FinFET, delta color compression advancements allowing 8:1 compression on some memory transactions, and pre-emptive compute functions that aid in asynchronous tasks. New to the GTX 1060 is GP106, which is a cut-down Pascal chip that houses 1280 CUDA cores, operating at a maximum Boost frequency of 1.7GHz. For comparative purposes, a chart with known 1060, 1070, and 1080 specs has been pasted below. The GTX 1070 has 1920 CUDA cores and the 1080 has 2560 CUDA cores.

NVIDIA GeForce GTX 1060 Specs vs. GTX 1070, GTX 1080, GTX 960

NVIDIA Pascal vs. Maxwell Specs Comparison
  GTX 1080 GTX 1070 GTX 1060 GTX 980 Ti GTX 980 GTX 960
GPU GP104-400 Pascal GP104-200 Pascal GP106 Pascal GM200 Maxwell GM204 Maxwell GM204
Transistor Count 7.2B 7.2B ? 8B 5.2B 2.94B
Fab Process 16nm FinFET 16nm FinFET 16nm FinFET 28nm 28nm 28nm
CUDA Cores 2560 1920 1280 2816 2048 1024
GPCs 4 3 2 (?) 6 4 2
SMs 20 15 10 (?) 22 16 8
TPCs 20 15 10 (?) - - -
TMUs 160 120 80 (?) 176 128 64
ROPs 64 64 ? 96 64 32
Core Clock 1607MHz 1506MHz ? 1000MHz 1126MHz 1126MHz
Boost Clock 1733MHz 1683MHz 1700MHz 1075MHz 1216MHz 1178MHz
FP32 TFLOPs 9TFLOPs 6.5TFLOPs ? 5.63TFLOPs 5TFLOPs 2.4TFLOPs
Memory Type GDDR5X GDDR5 GDDR5 GDDR5 GDDR5 GDDR5
Memory Capacity 8GB 8GB 6GB 6GB 4GB 2GB, 4GB
Memory Clock 10Gbps GDDR5X 4006MHz 8Gbps 7Gbps GDDR5 7Gbps GDDR5 7Gbps
Memory Interface 256-bit 256-bit ? 384-bit 256-bit 128-bit
Memory Bandwidth 320.32GB/s 256GB/s ? 336GB/s 224GB/s 115GB/s
TDP 180W 150W 120W 250W 165W 120W
Power Connectors 1x 8-pin 1x 8-pin 1x 6-pin 1x 8-pin
1x 6-pin
2x 6-pin 1x 6-pin
Release Date 5/27/2016 6/10/2016 7/19/2016 6/01/2015 9/18/2014 01/22/15
Release Price Reference: $700
MSRP: $600
Reference: $450
MSRP: $380
Reference: $300
MSRP: $250
$650 $550 $200

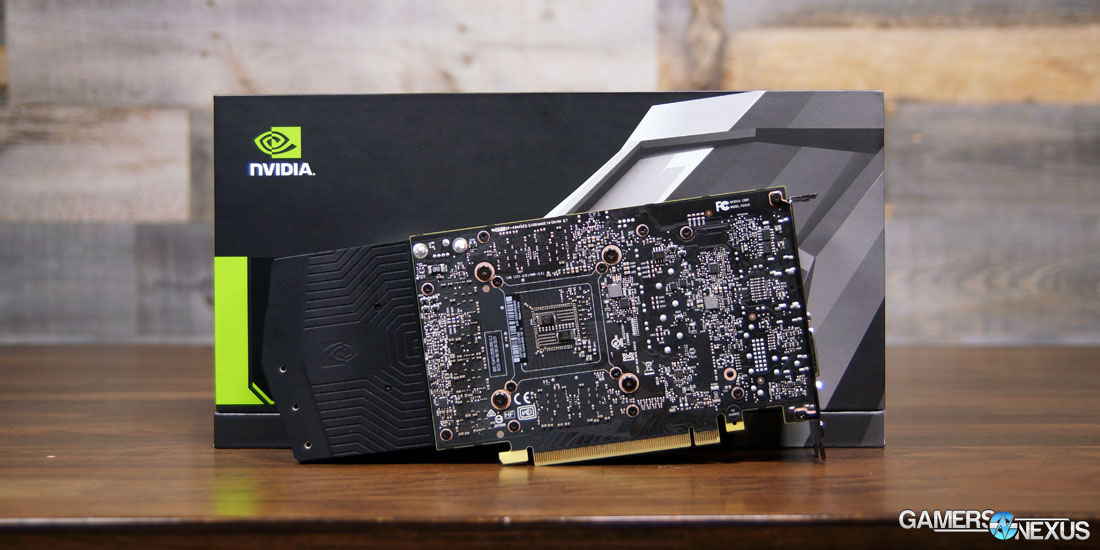

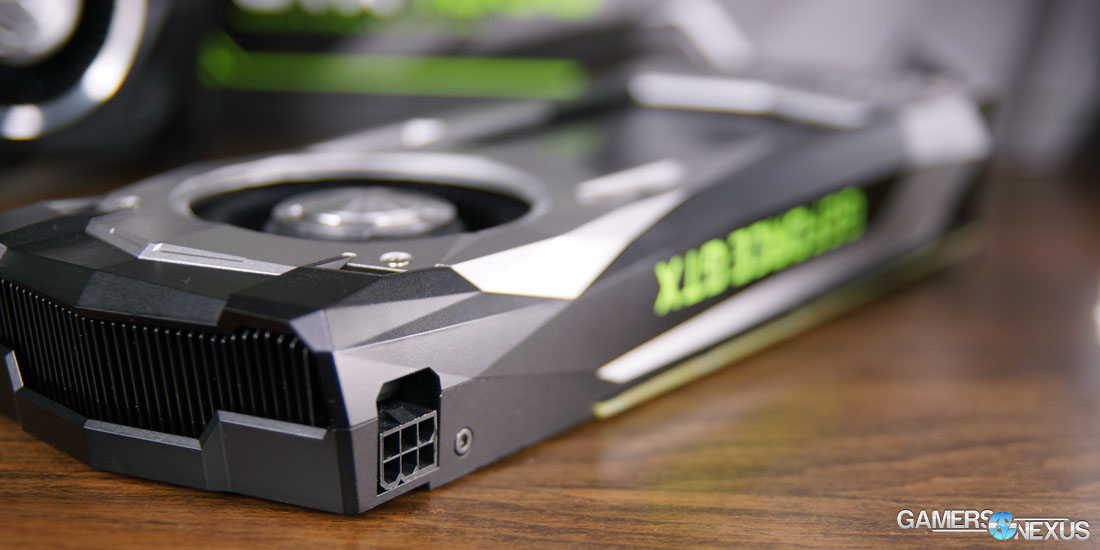

Power draw is rated at 120W for the GTX 1060 when under full gaming load, according to information from nVidia's announcement (we are testing this), and uses a single 6-pin power connector on the far right of the board. Interestingly, this power connector is located off of the PCB, as the cooler extends past the full board (also seen in the RX 480, and plenty of other small cards using a blower fan). Rather than plant the power header in the middle of the board, nVidia's shifted right-of-center and is likely using some sort of wiring/pass-through to the solder points on the PCB. We'll look into this in our tear-down. That won't be entirely relevant unless attempting custom cooler mods on the Founders Edition card, but we will research that ourselves as the review date approaches.

nvidia-gtx-1060-founders-1

nvidia-gtx-1060-founders-2

nvidia-gtx-1060-founders-3

The GTX 1060 will ship at 6GB of GDDR5 at 8Gbps. Despite rumors around the internet last week, there is no official 3GB model of the GTX 1060 known to exist at this time. NVidia made no announcement of such a product, and seems (at this moment) to only be planning a 6GB GTX 1060.

SMP support is available to the GTX 1060, with assistance from nVidia's Polymorph engines.

Note: There are no SLI fingers on the GTX 1060, and thus no support for LDA.

NVIDIA GTX 1060, 1070, 1080 FE Dimensions

  GTX 1060 FE GTX 1070 FE GTX 1080 FE
Dimensions 9.5” L (Card)
4” H
1.5” D(PCB only: 6.75”)
10.5” L
4” H
1.5” D
10.5” L
4” H
1.5” D

Regarding performance, nVidia's provided press release includes the following language: “GTX 1060 is on average 15 percent faster and over 75 percent more power efficient than the closest competitive product.” This is mentioned as being related to “gaming titles,” meaning not synthetic benchmarks. NVidia is clearly pointing at AMD's new RX 480 (reviewed) when claiming a 15% “faster” performance. Check back for our review as launch day nears to see if that statement holds true.

nvidia-gtx-1060-founders-4

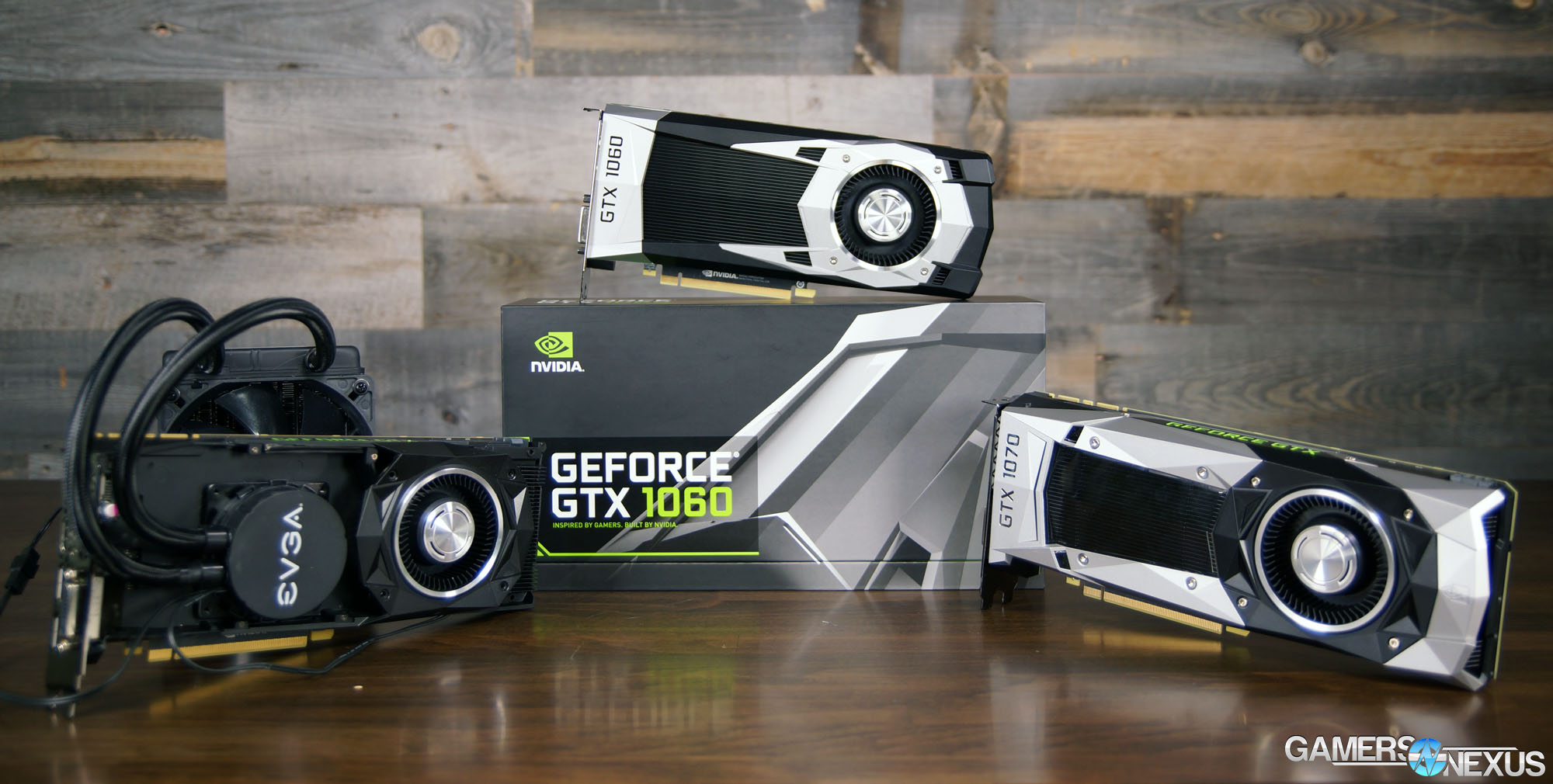

The GTX 1060 will enter the market with a range of approximately $250-$300. NVidia's MSRP is $250 for board partners, with scalability to higher prices as those AIB partners feel appropriate. The Founders Edition card will be priced at $300, and is properly limited in production for this run of the FE. The GTX 1060 Founders Edition card will utilize the same housing materials and dual-FET power supply as the previous FE cards, but has made substantial changes to the ID. The GTX 1060 is less “tessellated” in its appearance and flattens itself a bit, while also axing the acrylic window in favor of a matte black heatsink cover.

Partner cards and the Founders Edition card will release simultaneously this time, with no lead time for the nVidia FE reference design. The GTX 1060 release date is July 19. Ansel and VR Funhouse will be made available on July 14.
