GTX 1050 Ti vs. GTX 1050 Specs, & 1060, 1070, & 1080
|NVIDIA Pascal Specs Comparison|
|GTX 1050||GTX 1050 Ti||GTX 1060 3GB||GTX 1060 6GB||GTX 1070||GTX 1080|
|GPU||GP107-?||GP107-?||GP106 Pascal||GP106 Pascal||GP104-200 Pascal||GP104-400 Pascal|
|Fab Process||14nm||14nm||16nm FinFET||16nm FinFET||16nm FinFET||16nm FinFET|
|Memory Clock||7Gbps||7Gbps||8Gbps||8Gbps||8Gbps||10Gbps GDDR5X|
|Power Connectors||None||None||1x 6-pin||1x 6-pin||1x 8-pin||1x 8-pin|
|Release Date||November, 2016||10/25/2016||August, 2016||7/19/2016||6/10/2016||5/27/2016|
|Release Price||$110||$140||MSRP: $200||Reference: $300
GTX 1050 Ti & GTX 1050
The GTX 1050 Ti has an MSRP of $140, placing it in direct competition with some mid-class RX 460 cards. No reference cards will exist for the GTX 1050 and GTX 1050 Ti, and that includes a lack of “Founders Edition” cards. This is entirely a board partner launch, and availability will begin on October 25 for the GTX 1050 Ti, or about 2-3 weeks later for the GTX 1050 non-Ti card.
The 1050 Ti uses a GPU that operates on just two GPCs, the same as the GTX 1060 6GB and 3GB cards, with 3 SMs per GPC on the GTX 1050 Ti. Each SM hosts the usual 128 CUDA cores per SM, nothing new there, and that nets us 768 total CUDA cores. In terms of performance scaling, that'd mean the GTX 1050 Ti operates on approximately 40% fewer CUDA cores than the GTX 1060 6GB model.
Note also that the GTX 1050 Ti and 1050 are on 14nm fabrication process, which is part of nVidia's already ongoing process switching based on supply availability.
NVidia's GTX 1050 Ti runs the usual 8x TMUs per SM, resulting in a 48 texture map unit count and 32 ROPs. The GTX 1060 isn't quite double, but stands close with its 80 TMUs (and 48 ROPs). This specification disparity will primarily contribute to better 1440p gaming performance on the GTX 1060, which we've already shown is a fully capable card for high/ultra gaming at 2560x1440.
The stock clock of the GTX 1050 Ti is listed as 1290MHz, or 1392MHz boosted. We were told by nVidia that AIB partner models can allegedly overclock upwards of 1900MHz with an additional power header – though that's something GN will independently validate.
Speaking of power headers, the 1050 Ti doesn't need one – TDP is rated for 75W, meaning minimal power required to cool the GP107 GPU. It is not until factoring in heavier overclocks or other ancillary features that additional power headers will become necessary, though using one anyway will lighten load on the PCIe bus. The most important takeaway here is that the 1050 Ti can be operated on PSUs nearing 300-400W, depending on other hardware in the system. The industry is finally moving away from big power supplies, and this will hopefully encourage PSU manufacturers to invest at the low end. Right now, the 300W PSU market is largely filled with garbage – but that is slowly changing.
Memory speed functions at a reduced 7Gbps for both the GTX 1050 and 1050 Ti, down from 8Gbps on the GTX 1060 6GB GPUs. This is coupled with a reduction in memory capacity, the GTX 1050 at 2GB and 1050 Ti at 4GB. It's worth pointing out that this will almost certainly confuse buyers, as the GTX 1060 3GB card runs more SMs, cores, and an overall more powerful GPU than the GTX 1050 Ti, but has 3GB VRAM (or 1GB less than the 1050 Ti). We know that most of our readers understand that VRAM is not a direct measurement of performance, and that the SM resource availability is more important, but not all buyers will get that. This feeds into our argument that nVidia should have named the GTX 1060 3GB something different.
The memory subsystem for each card includes reliance on a 128-bit memory interface, totaling bandwidth of 112GB/s for each device.
As for the GTX 1050, it's the same GPU. Take everything we just told you about the GTX 1050 Ti, then kill one SM. That results in a GTX 1050, which runs 5 SMs rather than 6, and nets a reduction of 128 CUDA cores and 8 TMUs. The core clock is increased to 1354MHz base and 1455MHz boost on the GTX 1050 non-Ti, with memory again at 7Gbps.
The GTX 1050 is available only in 2GB SKUs – and we hope it stays that way. There's no real reason for a 4GB GTX 1050 to exist.
In its press conference, nVidia made it a point to illustrate the nth-degree performance swing between using an IGP only (e.g. HD series Intel GPU) and adding a GTX 1050. We think this comparison is vacuous, seeing as no one is realistically going to be considering playing GTA V and the Witcher 3 on an i5 IGP. Take a look at that footnote: averaged performance of Fallout 4, GTA V, and The Witcher 3 (some of the most intensive titles out) as amalgamated with Overwatch, Battlefront, and Tomb Raider, and with “1080p/medium” settings across the board. The FPS disparity there is tremendous. Overwatch alone would throw the average.
We think this comparison is misguided. This is not revolutionary, nor is it news. Adding a dGPU improves performance. Everyone knows that.

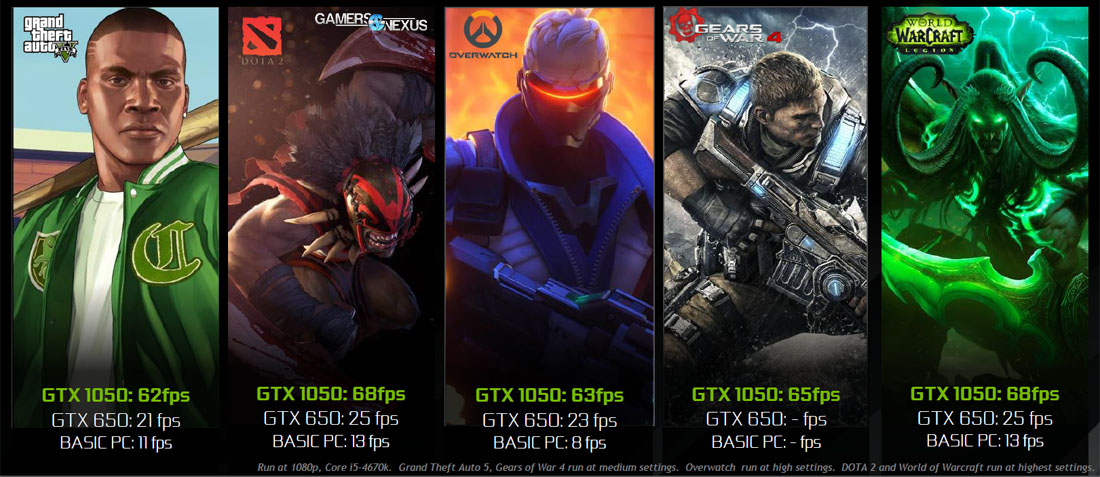

The more useful set of data is below:
This initial GTX 1050, provided by nVidia (press cards haven't arrived yet), highlights that the GTX 1050 should sustain ~60FPS AVG in GTA V with medium settings and Overwatch with High settings. We'll also look into frametime performance once our models arrive. These numbers provide some minimal expectation as to performance, though, and something against which we can write our review later th is week.
We have cards en route. Check back this week for reviews. To our knowledge, no reviewers received cards from nVidia in time for day-one publication. Cards are being distributed through board partners for this round.
Editorial: Steve “Lelldorianx” Burke
Video: Andrew “ColossalCake” Coleman
