Thermaltake Urban T81 & Core V71 PC Case Specs at CES 2014

By Published January 15, 2014 at 1:55 pm

Compared to our slew of previous case posts (Antec, Rosewill, Corsair), this is going to be some pretty quick coverage. We've got a big case round-up article pending publication, so you'll be able to get some excellent details there on both these cases.

Thermaltake's Core V71 on display.

Thermaltake's suite at CES had some new successors to the Big Water line (still under review), a bunch of peripherals, and a whole table full of cases. We're focusing on the Urban T81 enthusiast case specs and Core V71 case today.

Thermaltake Urban T81 & Core V71 Specs

These cases are nearly identical in terms of specs (and use the same underlying frame), but have different side panels and aesthetics. For that reason, we've got one chart:

Form Factor Full Tower - ATX, Extended ATX, Micro-ATX
Air Cooling
(Pre-installed)
2x200mm front intake (600~800RPM; 13~15dBA)
1x140mm rear exhaust (1000RPM, 16dBA)
1x200mm top exhaust (600~800RPM; 13~15dBA)
Fan Support

2x200mm front
2x200mm top
1x140mm rear
2x140mm bottom

Radiator Support Up to 420mm front
Up to 420mm top
1x120mm rear
Up to 280mm bottom (watch out for PSU size)
Clearance CPU cooler height: 180mm
VGA length: 360mm w/ HDD cage
VGA length: 400mm w/o HDD cage
Dimensions 585 x 235 x 602mm; 21.7lbs.
MSRP $190

thermaltake-case-1

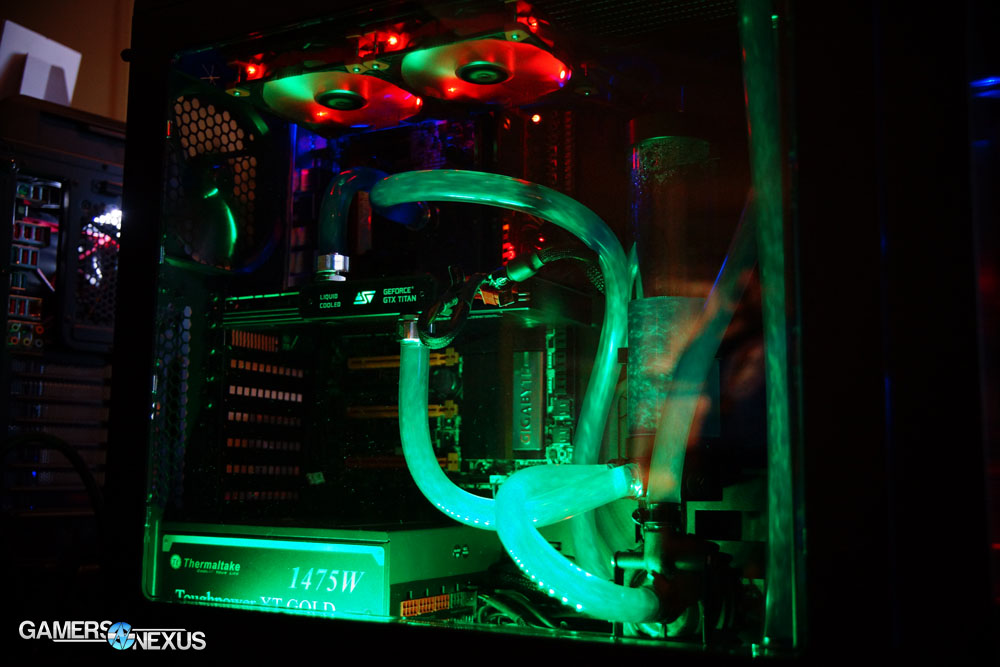

The Thermaltake Urban T81 is a cheaper competitor to Corsair's 900D -- and you'll be seeing that name a lot lately, given the large target Corsair put on its back last year at CES. It's smaller in height (fits under the desk), but still supports up to 420mm radiators in the front/top positions and 280mm radiators in the bottom. The case has a brushed aluminum outer appearance with a ton of I/O options on the top (2xUSB3.0, 4xUSB2.0, 1x3.5mm, fan speed controller).

thermaltake-case-2

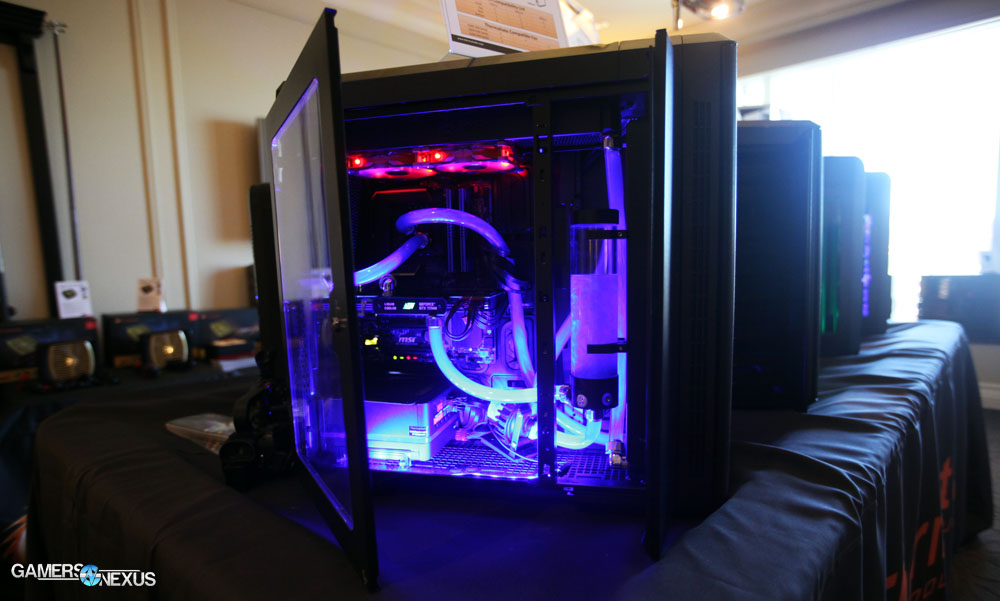

Thermaltake's T81 has a 'suicide door' hinging left side panel, using a key to open both doors at once. The left split of the panel consists of a large window, the right split conceals the drive scaffolding with a steel sheet.

The unit ships with 3x200mm fans in the front and top positions.

As for the Core V71, it's mostly the same thing, except the exterior is riddled with a mesh (front/top) and it doesn't include a hinging front panel door. The Core V71 can mount a 3.5" HDD vertically (right side of the 5.25" bays), which is a pretty cool feature for concealment/cable management purposes. Other than that, the left side panel is one sheet (not hinged) and is primarily comprised of the window.

The Urban T81 is expected to retail at $190, the V71 at $160.

Editorial, Video Editing, Photography: Steve "Lelldorianx" Burke.
Supporting Photography: Jim "Neutron" Vincent.

Last modified on January 15, 2014 at 1:55 pm
