Following AMD’s Computex press conference, we headed over to the Gigabyte suite (after our X299 coverage) to look at the X399 Aorus Gaming 7 motherboard. The new Gigabyte X399 Gaming 7 board is one of two that we’ve seen thus far – our ASUS coverage is next up – and joins the forces of motherboards ready for AMD’s Threadripper HEDT CPUs.

The Gigabyte X399 Aorus Gaming 7 motherboard sockets Threadripper into AMD’s massive socket, dead-center, and uses three Torx screws to get at the LGA pin-out. The CPUs will provide 64 PCIe lanes, as we’ve already reported, with 4x PCIe Gen3 lanes reserved for high-speed transport between the CPU and chipset. The other 60 are assignable at the motherboard manufacturer’s will; in this case, Gigabyte willed for an x16/x8/x16/x8 full-length PCIe slots, with an additional 3x M.2 (x4) slots. That immediately consumes all 60 lanes, with the remaining 4 reserved for the chipset communications.

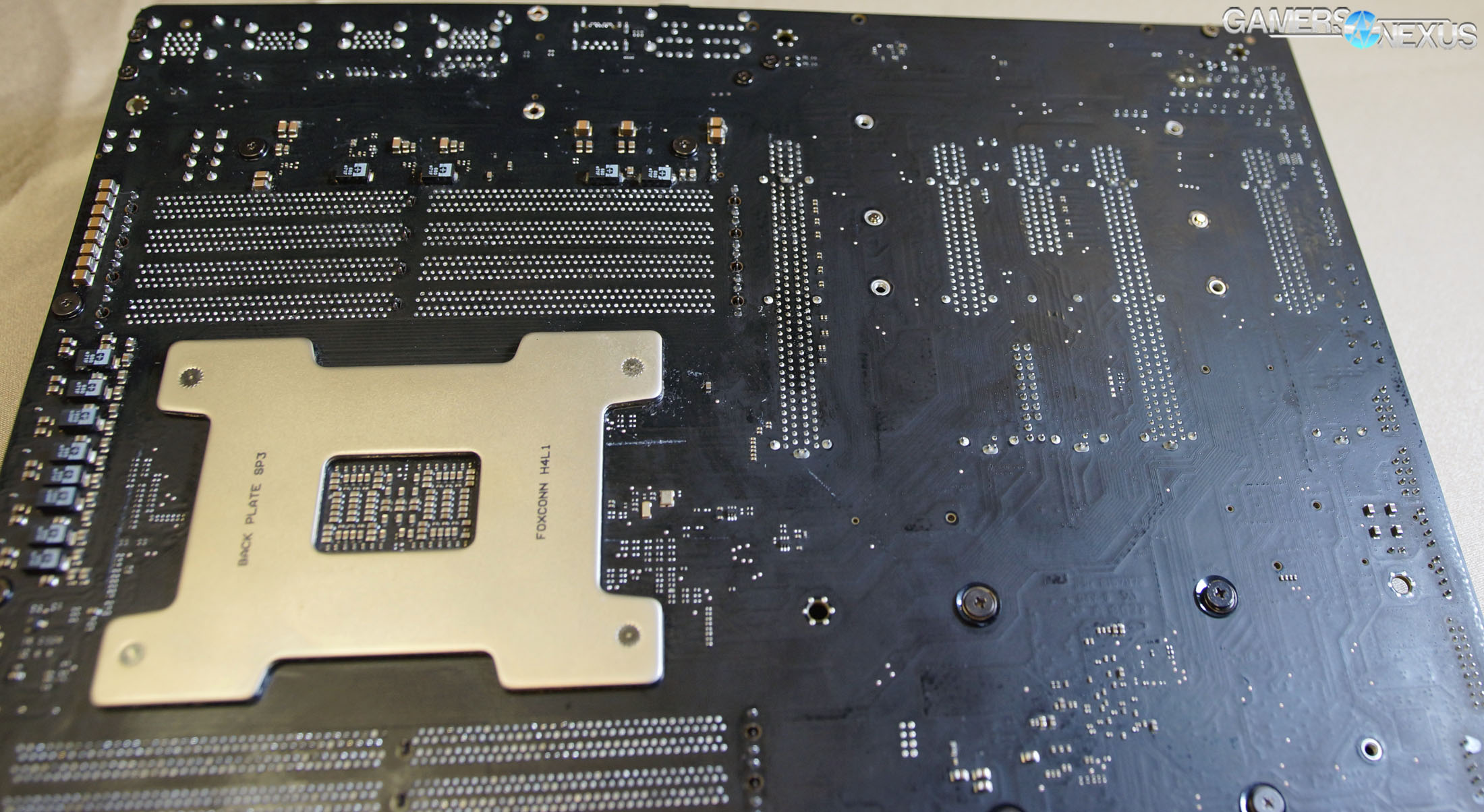

gigabyte x399 gaming 7 4

Gigabyte’s X399 Aorus Gaming 7 presently hosts a 6-phase power design, but Gigabyte tells us that they’ll be ditching the 6-phase in favor of an 8-phase Vcore VRM. This, we’re told, is because the 6-phase simply wasn’t producing the power capabilities that Gigabyte desired. For the final production unit, Gigabyte will switch to an 8-phase Vcore VRM using all International Rectifier 3553 MOSFETs, with an IR 35201 for the voltage controller. The 8-phase Vcore VRM will be accompanied by 2x 2-phase memory VRMs (one for each side). We do not presently have further power design information, but GamersNexus is the source of the above information – this was found out through looking over the board’s components and speaking in an interview with Gigabyte’s PMs on the board.

gigabyte x399 gaming 7 3

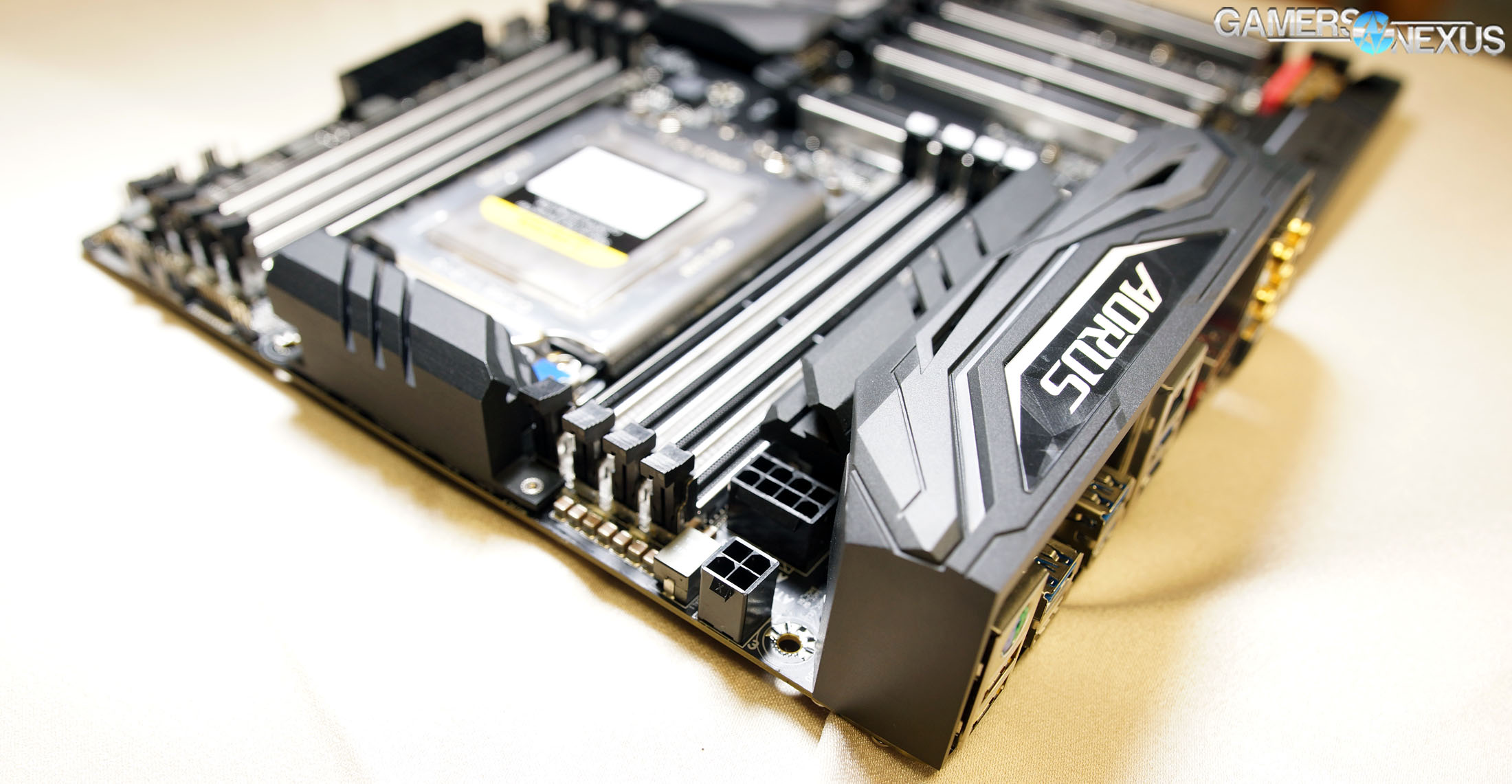

Gigabyte is running 1x 8-pin power header and 1x 4-pin power header for EPS12V lines, which is the AMD reference spec. Some boards we’ve seen are using 2x 8-pin, though 1x 8+4 will be standard.

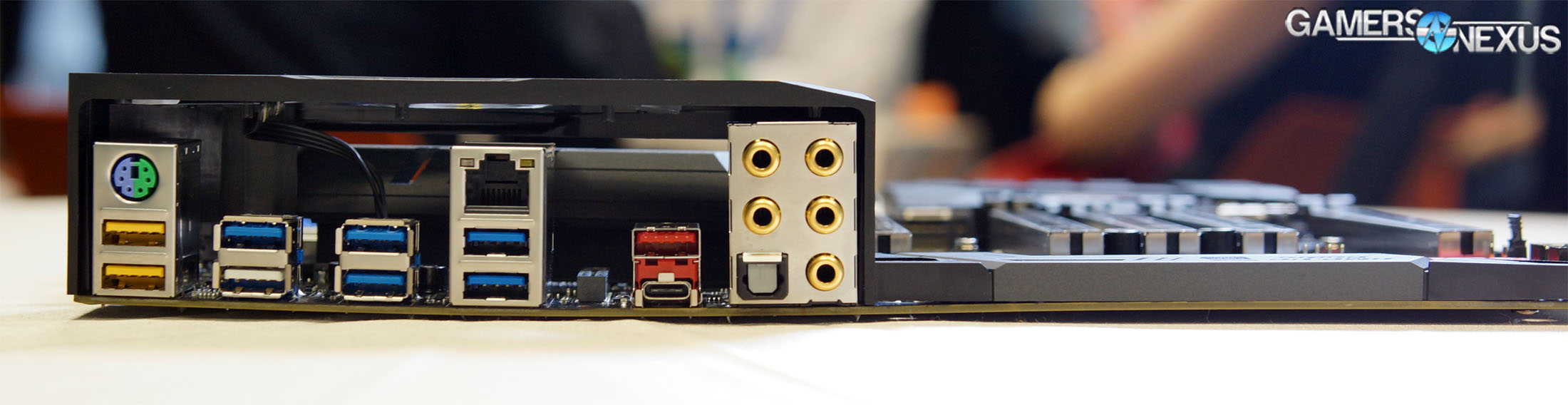

Other than this, the usual assortment of RGB LEDs and other accessories, like M.2 heatsinks, are present on the motherboard.

gigabyte x399 gaming 7 2

Threadripper will release on August 10, from what we presently understand, and the motherboards should ship alongside TR. Mass production availability is looking like mid-August. Price is TBD, as AMD has not finalized its socket and chipset prices.
