AMD ReLive vs. NVIDIA ShadowPlay Size & Quick FPS Benchmarks

By Published December 08, 2016 at 9:00 am
  •

There’s inherent FPS loss when using capture software, GPU-accelerated or otherwise. The best that software vendors can do is try to reduce loss as much as possible, but ideally without sacrificing too much video quality or too much compression capability.

A few months back, AMD finally axed its partnership with Raptr for the cumbersome Gaming Evolved suite. This move to greener – or ‘redder,’ perhaps – pastures immediately left AMD with a hole in its tools suite, namely a competitor to nVidia’s somewhat prolific ShadowPlay software capture tool.

Today, with the AMD ReLive update to the Crimson-brand drivers, AMD’s implemented its own solution to software capture for gameplay. The tool includes manually toggled capture, broadcast/streaming capture, and retroactive capture. This is a direct competitor to the ShadowPlay software from nVidia’s GeForce Experience suite, and performs many of the same functions with the same end objective.

We previously did this comparison with ShadowPlay versus FRAPS and AMD’s GVR, a solution that ultimately was subsumed by Gaming Evolved. It’s taken AMD a while to get back to this point, but ReLive is a fresh recording suite. In GN’s embedded video, we’ve got side-by-side capture comparisons between the two utilities, the impact on framerate when each is active, and a quick analysis of the compression’s efficacy. Much of this will also be contained below, though the quality comparison will require you view the video.

Before the video, here’s a table that GamersNexus compiled to for a ShadowPlay & ReLive comparison:

AMD ReLive & nVidia ShadowPlay Features
Compiled by GamersNexus.net
Record & Retroactive Record
  ReLive ShadowPlay
Video Bit-rate 0-50Mbps 0-130Mbps
Video Presets Low: 5Mbps
Med: 10Mbps
High: 30Mbps
Max: 50Mbps
Low: 15Mbps
Med: 20Mbps
High: 50Mbps
Max: 130Mbps
FPS 30FPS
60FPS
30FPS
60FPS
Encoder AVC
HEVC
NVENC (?)
Audio Bit-rate 32-320Kbps 184Kbps
Audio Functions Select Device
PTT
Auto-Detect
In-Game
Select Device
PTT
Auto-Detect
In-Game
Retroactive 20 minutes 20 minutes
Desktop? Yes Yes
Streaming Quality
  ReLive ShadowPlay
Services Twitch
YouTube
Custom Server
Twitch
YouTube
Bit-rate 1-10Mbps 1-18Mbps
Resolution 360p
480p
720p
1080p
360p
480p
720p
1080p
FPS 30FPS
60FPS
30FPS
60FPS
Audio Bit-rate 32-192Kbps 184Kbps (?)
Overlays Webcam
System Info
Duration
Custom
Webcam
FPS
Status Indicator
Viewer Count

Note: In the GTA testing, you’ll notice some missing meshes on the jeep. Some of this is randomization. Some is due to Radeon Settings’ out-of-box configuration, which includes AMD optimized tessellation and other changes to game graphics. It is not a change from the recording software.

Note also: AMD’s announcements for today contain a whole lot more than just the ReLive update, but that’s all we’re focusing on here. Check back tomorrow for our analysis and discussion of OCAT, the overlay and benchmarking tool that couples with PresentMon, and for discussion on other tools within the AMD suite – like an update to the Chill platform.

Exploring AMD ReLive

Let’s start with a walkthrough of the interface.

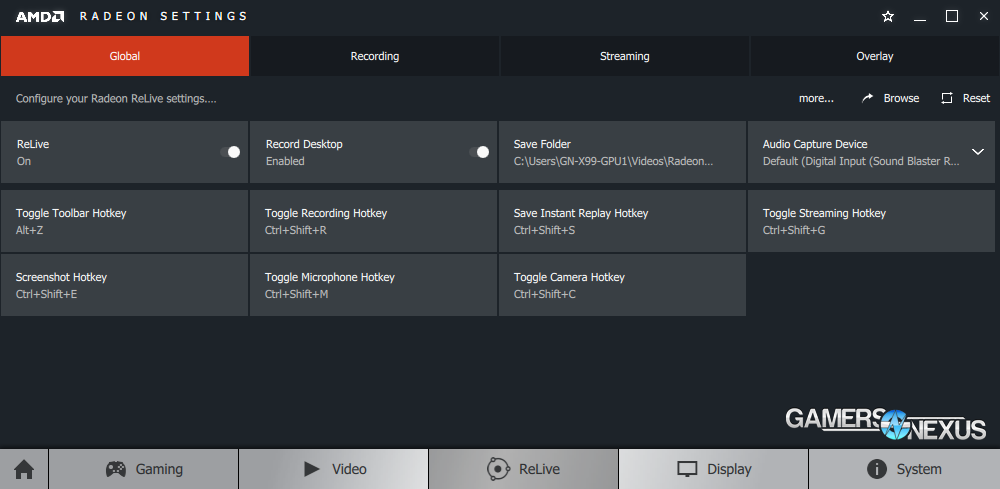

amd-relive-ui-1 1

AMD is using an overlay setup similar to ShadowPlay for capture of screenshots and video, including capture of the desktop and non-game applications. ReLive also establishes the same default hotkey as ShadowPlay – Alt-Z – but changes are possible through the interface. The hotkey pops up the overlay, through which you can easily modify capture settings, toggle capture without a hotkey, or begin retroactive gameplay capture and broadcast. The ReLive solution plugs into Twitch, YouTube, and custom servers directly. ShadowPlay allows both Twitch and YouTube, but does not yet offer a custom server option.

In many ways, ReLive and ShadowPlay are similar. We’ve highlighted a few of the key differences between the quality settings and options in the above table.

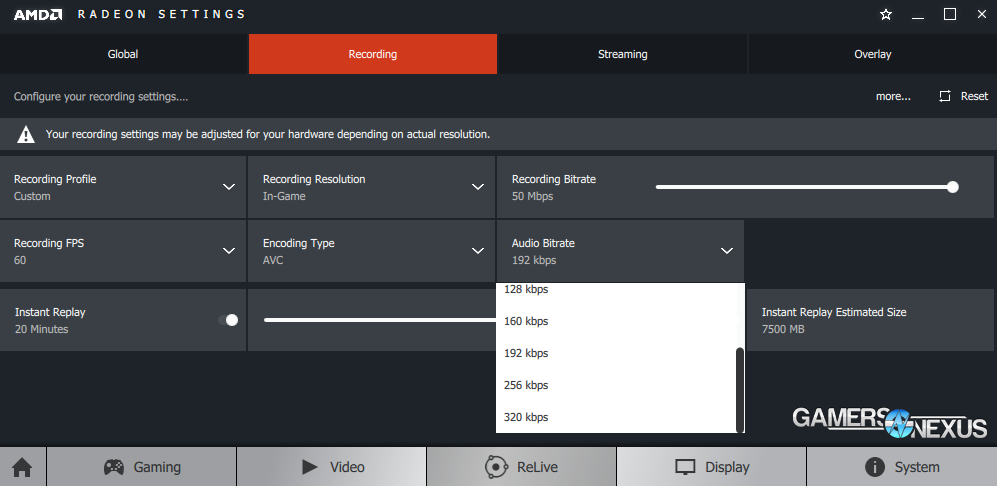

amd-relive-ui-2

Maximum supported bit-rate is where we’re starting. This was checked with an RX 480 Gaming X connected, while ShadowPlay was using a GTX 1060 Gaming X. We figured these cards are best for creating scenarios where we’ll later see any potential performance loss, and better represent the current end-user market.

With ShadowPlay, we’re able to output a level of quality that rapidly enters into “placebo” territory, maxing out at 130Mbps datarate, but GFE used to be limited to around 50Mbps in its earlier iterations. ReLive seems to max-out at 50Mbps, at least with this deployment, and uses similar low/medium/high quality presets to ShadowPlay. Preset qualities are also listed in the above table, but note that they aren’t an indication of who’s superior – just a note of what you’re getting for presets. Custom tuning is trivial with both ShadowPlay and ReLive.

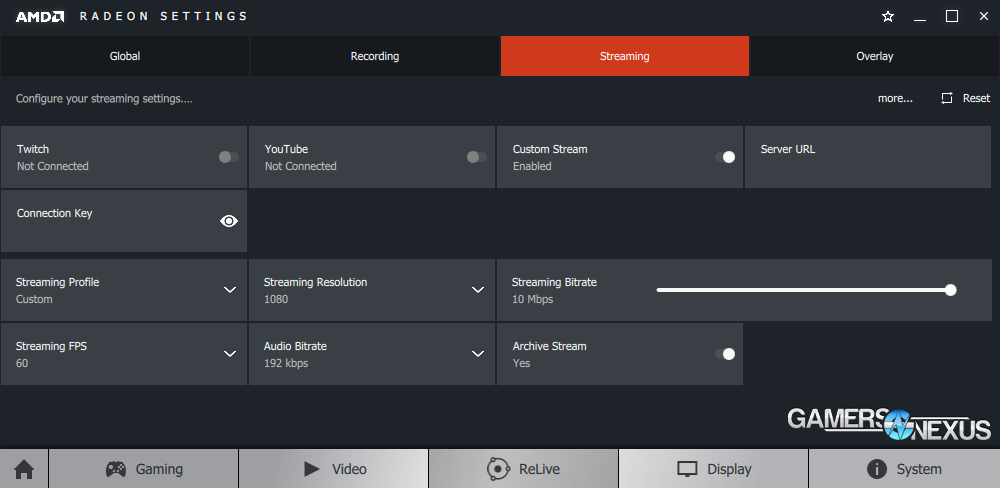

amd-relive-ui-3

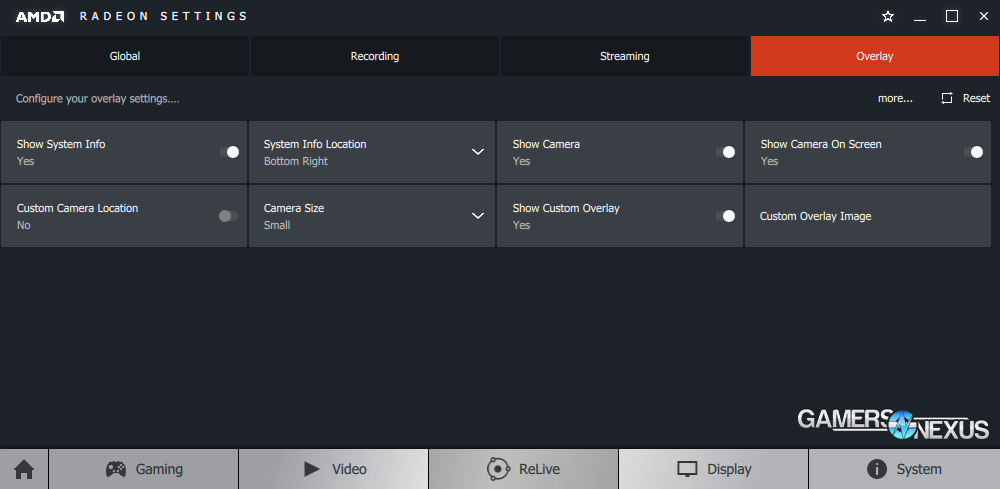

amd-relive-ui-4

Encoders for ReLive can be switched between AVC and HEVC, while nVidia’s uses its own solution for x264 encoding. Both ReLive and ShadowPlay are hardware-accelerated encoders, with designated GPU components responsible for handling all the encoding on the card. This moves the workload off the CPU and minimizes strain on I/O, as would be generated from lossless formats or non-accelerated solutions.

Moving down the list, we’ve got a default audio bit-rate of 184Kbps when captured by ShadowPlay, without options for customization. This bit-rate was found simply by inspecting the files, as it’s not openly displayed within the suite anywhere. AMD gets some points here, as the tool allows customization of bit-rate up to 320Kbps. There’s minimal storage delta between the higher bit-rate audio captures, so running with higher audio bit-rate isn’t going to impact performance in an exponentially negative fashion.

Both tools enable custom audio input device selection and choice between push-to-talk or always on microphones.

ReLive also includes a solution to overlay images onto the capture, so you could pre-watermark your video if streaming gameplay. Kind of a nice feature for folks who want to avoid any post-production at all. Also interesting, there’s a system information overlay that can pop-up in the corner at the start of a recording or broadcast, toggleable alongside camera overlays and a “time recording” indicator.

Sure, it’s not as advanced as something like XSplit or OBS, but it’s also not trying to be. Both ShadowPlay and ReLive are trying to fill a simpler gap in the market, not necessarily the semi-pro streamer market.

Test Methodology

The below test bench was used for all capture:

GN Test Bench 2015 Name Courtesy Of Cost
Video Card RX 480 Gaming X
GTX 1060 Gaming X
MSI -
CPU Intel i7-5930K CPU iBUYPOWER
$580
Memory Corsair Dominator 32GB 3200MHz Corsair $210
Motherboard EVGA X99 Classified GamersNexus $365
Power Supply NZXT 1200W HALE90 V2 NZXT $300
SSD HyperX Savage SSD Kingston Tech. $130
Case Top Deck Tech Station GamersNexus $250
CPU Cooler NZXT Kraken X41 CLC NZXT $110

Methodology here is straight-forward. We’re testing only with DiRT Rally and GTA V for now, with the former configured to 1440p/Ultra (0xMSAA) and the latter configured to 1080p/Very High + Ultra. Ultimately, it’s not all that important what the quality settings are, they just need to be the same on each device. Remember, we don’t care about a head-to-head FPS output here; that’s not really how this works, and it wouldn’t be linear. We’re comparing on two different video cards, with two different software solutions, and so we can only reasonably generate a performance metric by looking at framerate deltas (versus 100% baseline) to determine actual performance impact.

And there will be one, as is the nature of any such tool. Any recording software will impact framerate at least somewhat, and I/O at least marginally. Something like FRAPS will hit both hard, but GPU-accelerated solutions with on-die encoders won’t exhibit nearly as much framerate loss.

The built-in benchmarks were used for both games. You’ll notice some changes in the mesh complexity with AMD testing (resultant of pre-configured options within Radeon Settings, which we’ll talk about later), but the game’s quality settings were the same in our testing. Besides, again, it just matters that the quality is the same intra-card for the benchmark (though you want them the same for visual comparison, too, as in the above video).

Storage was also simple: We loaded DiRT Rally’s benchmark and let it roll for a full minute. A simple input macro was used to start and stop the recording at exactly the same time (with some variance for usual latency).

All captures, unless otherwise noted, were at 50Mbps on each software solution. AVC was used for AMD (h.264), and nVidia also was formatting with h.264. Compression approach is obviously different, though. Note that, due to encoding differences between vendors, we are targeting a same-size file at the end of the test pass. This allows us to compare quality to file size. AMD’s audio recording was set to 192Kbps, which is the closest we could get to nVidia’s immutable ~184Kbps. The difference in performance is effectively 0, though.

Storage Comparison - ShadowPlay vs. ReLive

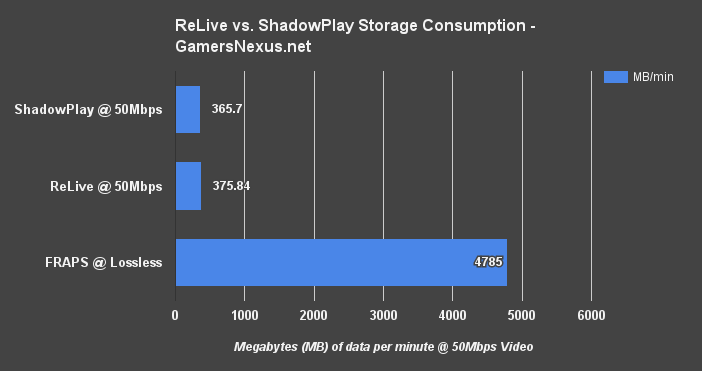

relive-vs-shadowplay-storage

(Note: FRAPS is only here for a frame of reference, since it used to be ubiquitous.)

When we look at file size comparisons per minute of capture, this chart is what we get. For comparison, our old data from FRAPS benchmarking is also present here, since that software hasn’t changed in years and it was once a mainstay in video capture.

We’re looking at a file-size of nearly 5GB with FRAPS, which records effectively losslessly and without GPU acceleration. That’s a bit-rate somewhere in the range of 638Mbps, assuming no compression plays. The newest version of ShadowPlay is capturing at about 366MB for the entire one-minute run, with ReLive capturing at about 376MB for the same pass. This is a repeated benchmark, so we know the data is the same for each test pass, though we do have a slight bit-rate difference in audio for which we can’t control. There are also some very minor differences in DiRT’s bench, like occasionally positioning the camera a bit higher or lower. Regardless, ReLive and ShadowPlay are effectively identical in storage requirements. There is no meaningful difference between the two, with regard to file size.

Performance Impact from AMD ReLive & nVidia ShadowPlay

Starting with DiRT Rally at 1440p with Ultra settings, and using an RX 480 Gaming X for AMD or GTX 1060 Gaming X for nVidia, these are the results we’re seeing:

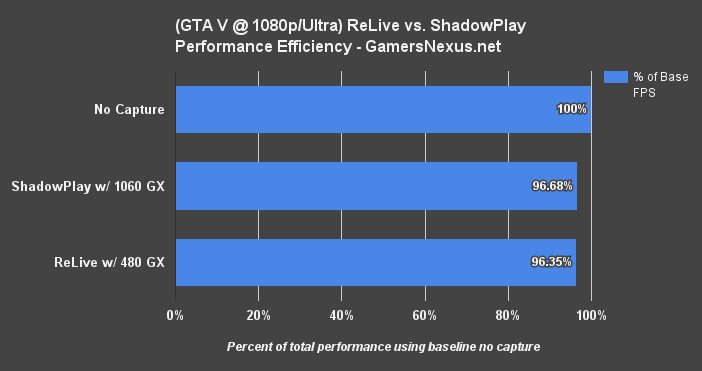

relive-vs-shadowplay-gta-v

Note that this is relative performance scaling, since raw FPS means nothing to us given the different video cards used for testing.

With GTA V, we see that ShadowPlay performs better than in DiRT. This is certainly something we saw previously, where AMD GVR or GFE 2.0 would vary performance based on game. A lot of that may be how the particular game interacts with the overlay provided by the vendor.

Anyway, the performance difference pegs ShadowPlay and the GTX 1060 at a performance loss of 3.32%, moving from 99.3 to 96FPS AVG. The RX 480 with ReLive loses 3.65% of its performance, a move from 90.3FPS to 87FPS AVG. Not a significant loss in performance for either device.

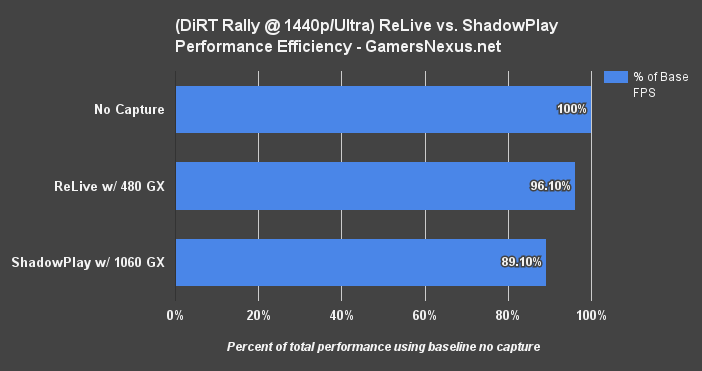

relive-vs-shadowplay-drt

The GTX 1060 using ShadowPlay is losing approximately 10.9% of its performance with DiRT Rally when capturing gameplay, which moves it from 98FPS AVG to 87.3FPS AVG and with comparably reduced 1% and 0.1% lows. The RX 480 using ReLive is losing approximately 3.9% of its performance with the game and the same capture settings, or a shift from 86.7FPS AVG to 83.3FPS AVG.

Again, this game doesn’t seem to particularly like ShadowPlay, and we’re certain similar scenarios exist for ReLive – it’s just a matter of getting more hands-on time with the solutions. Either way, though, the averaged spread of performance will remain close to the 3-4% margin for performance loss for both ShadowPlay and ReLive.

ReLive a Huge Move Forward for AMD

This is all good news. It didn’t used to be the case that video encoding could be handled on the GPU itself, which now all have dedicated encoders specifically for this task. They don’t really eat into game processing, and that’s true even when performing retroactive records. Your biggest loss will be from games that don’t like how the particular interface interacts with them, but not generally the encoding process itself. That bandwidth is miniscule at the end of the day, and isolated in its own pipeline.

The biggest takeaway here is that where ShadowPlay was already good, AMD can now compete directly with its own capture tool that performs with similar efficiency in storage and overhead. The interface, for what it’s worth, is also directly comparable to GFE and ShadowPlay.

We’re happy to see AMD finally include its own software-based capture solution. That’s a major feature that shouldn’t be overshadowed. There are plenty of third-party solutions, but integrating this stuff for more simplistic gameplay capture is important. Not everyone needs the complex options that come with OBS and XSplit, neither of which is particularly good for upload-style recording.

The primary take-away here is that both AMD and nVidia offer comparable capture solutions, and that this checkbox should no longer weight a GPU purchase with any meaningful heft. AMD's a bit behind in some places, like broadcast quality, and nVidia's behind in some places, like audio quality. Overall, though, the two do largely the same thing, and similarly well.

The interface overall is easy to navigate and use if you’re already used to ShadowPlay, and should be available in drivers posted for download as of today. Check back shortly for our coverage of the rest of the AMD driver update, though; we wanted to give ReLive its own video, since we have covered this topic in the past for both vendors. There’s plenty more to talk about and analyze.
