R5 2400G APU Memory Benchmarks & Single vs. Dual-Channel

By Published February 21, 2018 at 7:07 pm
  •

CPUs with integrated graphics always make memory interesting. Memory’s commoditization, ignoring recent price trends, has made it an item where you sort of pick what’s cheap and just buy it. With something like AMD’s Raven Ridge APUs, that memory choice could have a lot more impact than a budget gaming PC with a discrete GPU. We’ll be testing a handful of memory kits with the R5 2400G in today’s content, including single- versus dual-channel testing where all timings have been equalized. We’re also testing a few different motherboards with the same kit of memory, useful for determining how timings change between boards.

We’re splitting these benchmarks into two sections: First, we’ll show the impact of various memory kits on performance when tested on a Gigabyte Gaming K5 motherboard, and we’ll then move over to demonstrate how a few popular motherboards affect results when left to auto XMP timings. We are focusing on memory scalability performance today, with a baseline provided by the G4560 and R3 GT1030 tests we ran a week ago. We’ll get to APU overclocking in a future content piece. For single-channel testing, we’re benchmarking the best kit – the Trident Z CL14 3200MHz option – with one channel in operation.

Keep in mind that this is not a straight frequency comparison, e.g. not a 2400MHz vs. 3200MHz comparison. That’s because we’re changing timings along with the kits; basically, we’re looking at the whole picture, not just frequency scalability. The idea is to see how XMP with stock motherboard timings (where relevant) can impact performance, not just straight frequency with controls, as that is likely how users would be installing their systems.

We’ll show some of the memory/motherboard auto settings toward the end of the content.

Components Under Test

The kits we’re testing include the following:

  • GSkill Trident Z CL14 3200MHz (provided by GSkill in ~2017)
  • GSkill Ripjaws V CL15 2400MHz (purchased in ~2016)
  • GEiL EVO X CL16 3200MHz (provided by AMD for R5 in 2017)
  • Corsair Vengeance LPX 2933MHz CL16 (provided by AMD for R7 in 2017)

All kits are being tested in 16GB capacities (2x8GB sticks).

We are using the following motherboards:

Other testing information was discussed in our GT 1030 & R3/G4560 testing previously.

No overclocking is applied. Unless otherwise stated, we are simply applying XMP and letting the board & memory do the work. The goal is to test how each behave when left to this simple user scenario.

Rocket League: AMD Raven Ridge (Ryzen) Memory Benchmark

amd r5 2400g rocket league memory

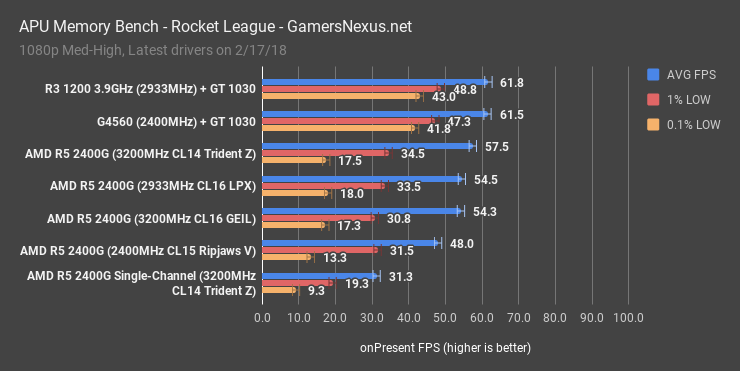

Rocket League at 1080p and High-ish settings will start us out: For this one, our R5 2400G operated a 58FPS AVG with 3200MHz CL14 Trident Z memory from GSkill, with 0.1% lows tagging along at 18FPS. The GT 1030 and G4560 would be a good baseline here, performing at about 62FPS AVG, but with significantly improved frametimes.

Keep in mind that our focus today is on memory, so we’ll get to APU overclocking in a later content piece.

Getting down to the memory comparison on the R5 APU, the next-best performing kit was our Corsair LPX memory that AMD provided with the R7 last year, operating at 2933MHz and CL16. The next one down was our GEIL kit, provided by AMD for the R5 launch, operating at 3200MHz and CL16. In this instance, however, there’s more different than just the top-level CAS timings. We’ll get to those toward the end of the content, as it’s decidedly more “boring” than FPS numbers, for most.

Anyway, scalability has us ranking the Corsair LPX and GEIL kits within margin of error of one another – effectively equal in performance. The 2400MHz CL15 Ripjaws V memory operated at about 48FPS AVG, marking the top-to-bottom range of performance as about 9FPS between the Trident Z and Ripjaws kits. That plants the 3200MHz CL14 Trident Z kit as 19.8% ahead of the Ripjaws kit. The Ripjaws unit also dropped frametimes further, landing at 13FPS 0.1% lows.

Finally, our single-channel test takes the best kit – the Trident Z CL14 memory – and tests it with only one channel firing. This lands us at 31FPS, placing the dual-channel Trident Z kit about 80% ahead in performance. We nearly double performance by adding a stick of memory. So far, with only one data point, it’d look like builders of APU systems will definitely want to go dual-channel, even if it’s a couple dollars more.

DOTA2 Raven Ridge APU Benchmark (R5 2400G)

amd r5 2400g dota2 memory

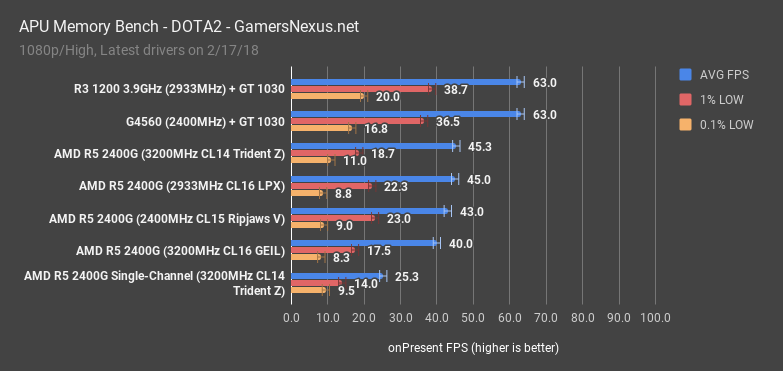

For DOTA2, we test at High settings and 1080p using DirectX 11. Note that AMD Ryzen CPUs have traditionally fallen behind in this particular game, so we would anticipate that performance behavior would follow-through on Raven Ridge. This is more a factor of DOTA2 favoring frequency over threads.

Regardless, our two GT 1030 tests were bound by the GPU, topping-out at 63FPS AVG. The R5 2400G with Trident Z memory maintained an average of 45FPS, with lows somewhat low at 19FPS. The 2933MHz LPX kit falls in second place again, for the second time, with the Ripjaws V kit outpacing our GEIL CL16 memory by a few FPS. The stack places the Trident Z and LPX memory as functionally tied and within error margins, with the GEIL kit not far behind. Going single-channel nuked performance, bringing output down to 25FPS from 45FPS, granting the dual-channel configuration a 79% lead over the single-channel configuration. Lows aren’t much different, but that’s largely a factor of how this game generally behaves.

CSGO R5 2400G Memory Benchmark

amd r5 2400g csgo memory

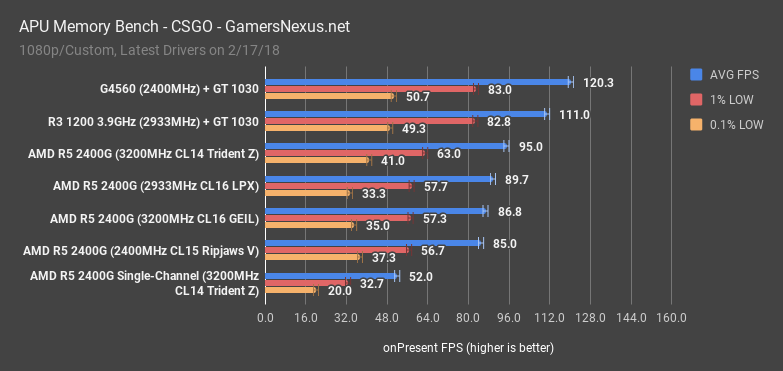

For CSGO with relatively high settings at 1080p, the baseline tests operated around 111 to 120FPS AVG, with our highest-performing R5 2400G, non-overclocked, at 95FPS with the Trident Z kit of memory. Note also that the R5’s lows maintain a much healthier number this time, marked at 41FPS for 0.1% low and 63FPS for 1% low. CSGO is fully playable on the R5 2400G and maintains a consistent frame-to-frame interval during gameplay.

The next component was, once again, the Corsair LPX at 2933MHz with CL16 timings, allowing the Trident Z to lead by about 5.9%. The GEIL kit ranks roughly within error of the Ripjaws 2400MHz kit, further demonstrating that this particular kit of memory doesn’t play as well with this specific motherboard. Keep in mind that explicit motherboard tuning for validated memory kits can impact performance, so other boards may behave differently.

The Ripjaws V 2400MHz kit places last, about 10FPS behind the Trident Z kit, which results in a lead of about 12% for the Trident Z memory kit. Pulling up Newegg, the price difference is about $230 for the Trident Z kit at 16GB, or about $165 for the Ripjaws V kit that we used. Again, that’s at 16GB and strictly comparing those kits.

Back to the chart, single-channel testing had us at 52FPS AVG, with 0.1% low values significantly reduced – we have more frametime variance here than previously. We’re about 83% ahead with the dual-channel alternative.

Overwatch R5 2400G Memory Benchmark

amd r5 2400g overwatch memory

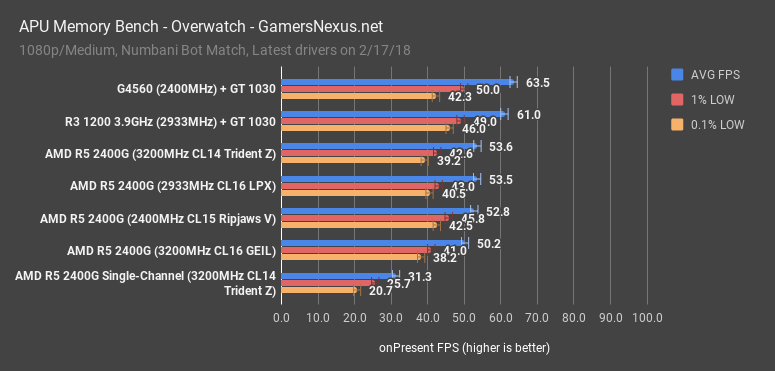

Overwatch at Medium is above – more of the same.

Sniper Elite 4 – Raven Ridge APU Memory Benchmark

amd r5 2400g sniper memory

NOTE: All GPUs, unless otherwise noted, were tested with our standard GPU bench machine (incl. 4.5GHz 7700K).

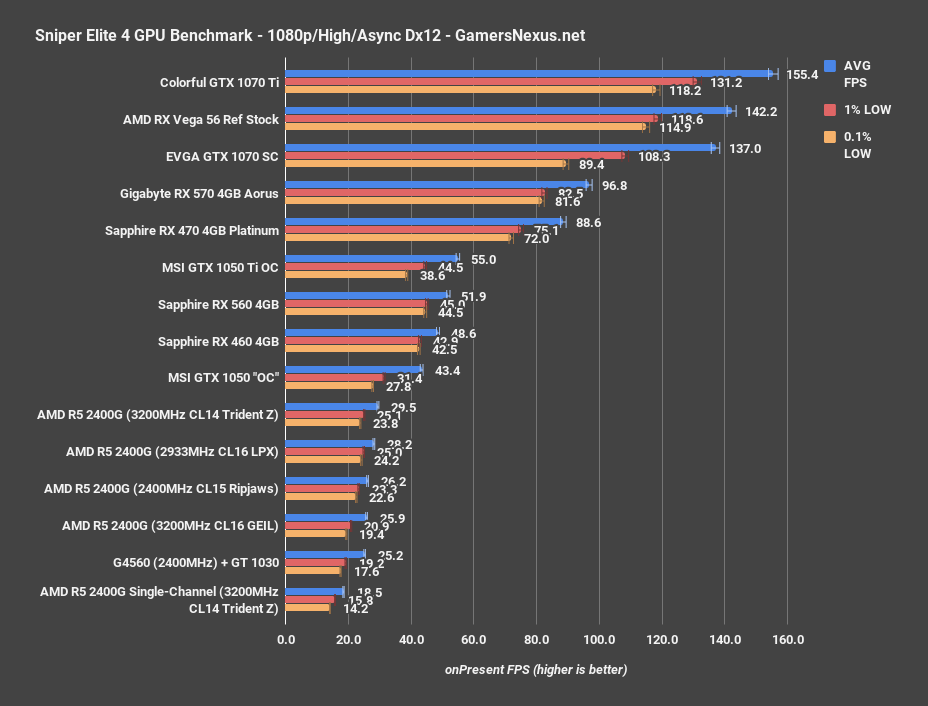

Sniper Elite 4 gives us a DirectX 12 test with Async Compute – and one which has been exceptionally well-optimized, at that. We’re testing at 1080p/High, as that’s what we have the most data for with standard GPU benchmarks. Note that, of course, you’d probably dial-down to medium for actual gameplay. We’re just looking at scaling today, though.

For this benchmark, we observed the 2400G outperforming the GT 1030 and G45560 combination notably, which comes down to an AMD advantage with Sniper Elite’s asynchronous compute pipeline. The Trident Z CL14 kit ranks at about 30FPS AVG, with lows tightly behind, and the 2933MHz CL16 kit nearly tied in performance. We’re beginning to bump against other limitations, here. The CL14 Trident Z kit again lands 12-13% ahead of the 2400MHz Ripjaws V kit, and the GEIL kit again demonstrates poor performance from its auto timings on this board. Single-channel performs significantly behind, as previously.

Raven Ridge Firestrike Memory Test

amd r5 2400g firestrike memory

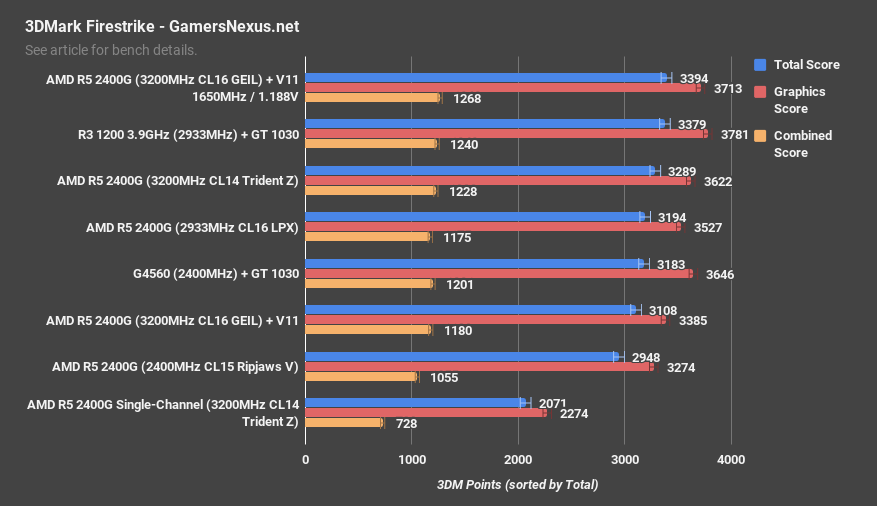

FireStrike gives us a synthetic, recapped look at everything, including a quick test we did with a 1650MHz clock on the APU’s Vega 11 GPU, which roughly equals, or slightly underperforms, against the GT 1030.

As for memory performance, the Trident Z kit lands our total score at about 3289, which is about 3% ahead of the Corsair LPX kit, or about 5.8% ahead of the GEIL kit, and about 11.6% ahead of the 2400MHz Ripjaws V kit. Versus single-channel, we see a marked uplift of 59% in total score.

Raven Ridge Timespy Memory Test

amd r5 2400g timespy memory

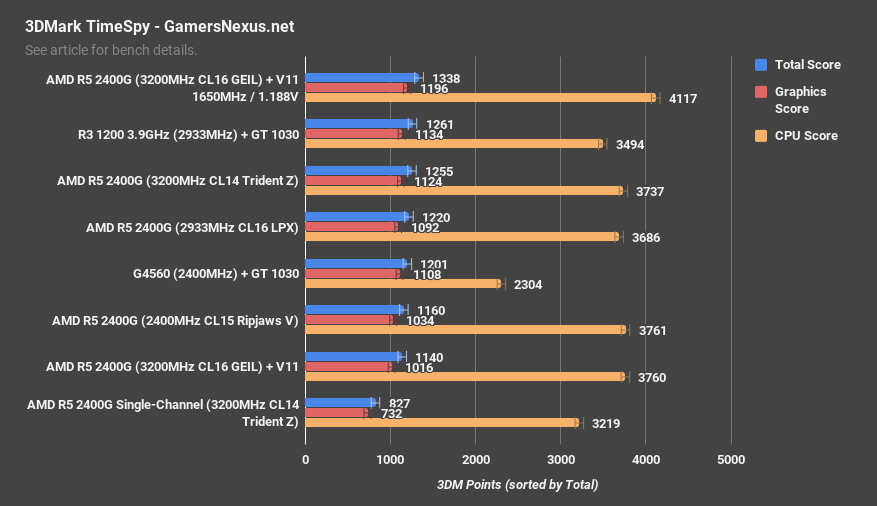

For Timespy, we’ll just briefly mention that the overclocked Vega 11 component does well to place the APU ahead of the GT 1030 build, but we’ll talk about that more in a later piece.

Focusing back on memory, the Trident Z kit places our total score at 1255, which ranks about 11% ahead of the GEIL 3200MHz kit that AMD provided for the R5 review, or about 3% ahead of the 2933 Corsair kit. Single- versus dual-channel once again has tremendous impact on performance.

Motherboard Impact

Let’s briefly talk about motherboard impact on Raven Ridge performance before moving on. Please note that this isn’t crazy in-depth, and we’re not talking overclocking support or VRM performance. The only focus is some quick synthetic tests against the highest- and lowest-performing memory kits.

Motherboards for Raven Ridge - Timespy

amd r5 2400g timespy motherboards

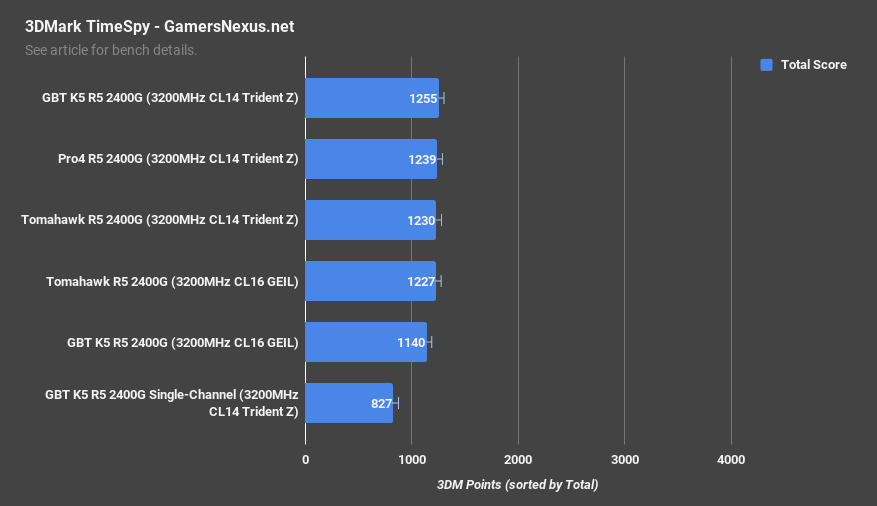

For TimeSpy, the Gigabyte Gaming K5 with Trident Z memory ranked at 1255 for its combined score, with the Pro4 within our margin of error. These two are effectively equal. The Tomahawk scored at 1230 for the Trident Z kit, giving us a top-to-bottom scoring of 2% difference.

Motherboards for Raven Ridge - Firestrike

amd r5 2400g firestrike motherboards

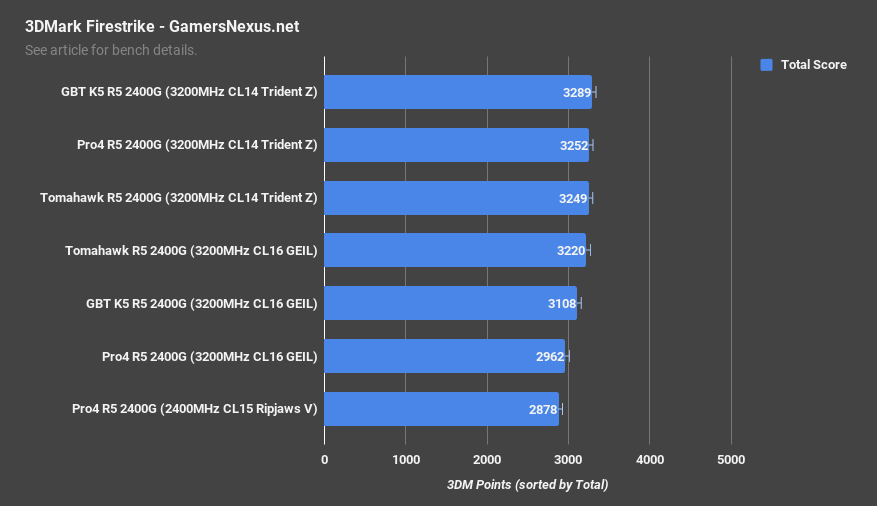

Firestrike positions the Gigabyte Gaming K5 at the top, but also completely within error of the Pro4 – we are within about 1% of performance, and so these boards apply timings in a way that makes them perform functionally equivalently. The Tomahawk B350 board lands the Trident Z kit also close behind. Between these three boards, there’s nothing crazy going on in score.

GSkill Trident Z CL14 GBT K5 ASRock Pro4 MSI B350 Tomahawk
Frequency 3200 3200 3200
CAS Latency 14 14 14
tRCDRD 14 14 14
tRCDWR 14 14 14
tRP 14 14 14
tRAS 34 34 34
ADVANCED TIMING CTRL
tRC 48 48 75
tWR 24 Auto 24
tCWL 18 Auto 14
tRRD_S 6 Auto 6
tRRD_L 8 Auto 9
tWTR_S 4 Auto 4
tWTR_L 12 Auto 12
tRFC 312 Auto 560
tRFC2 192 Auto
tRFC4 132 Auto
tRTP 12 Auto 12
tFAW 39 Auto 34
tRCPAGE AUTO Auto Auto
tRDWR AUTO Auto 7
tRDRDSC AUTO Auto 1
tRDRDSD AUTO Auto 4
tRDRDDD AUTO Auto 4
tRDRD_SCL AUTO Auto 5
tWRRD AUTO Auto 4
tWRWRSC AUTO Auto 1
tWRWRSD AUTO Auto 6
tWRWRDD AUTO Auto 6
tWRWR_SCL AUTO Auto 5
tCKE AUTO Auto 8
ProcODT AUTO Auto Auto
Command Rate AUTO Auto 1
CAD BUS SETUP TIMING AUTO Auto
AddrCMDSetup AUTO Auto Auto
CsOdtSetup AUTO Auto Auto
CkeSetup AUTO Auto Auto
CAD BUS DRIVE STRENGTH AUTO Auto Auto
ClkDrvStren AUTO Auto Auto
AddrCMDDrvStren AUTO Auto Auto
CsOdtDrvStren AUTO Auto Auto
CkeDrvStren AUTO Auto Auto
DATA BUS CONFIG AUTO Auto Auto
RttNom AUTO Auto Auto
RttWr AUTO Auto Auto
RttPark AUTO Auto Auto

There is a slight difference in timings, though. Above is a simple spreadsheet on the motherboard auto timings for the Trident Z kit; note that, of course, different memory kits may have very different results, here. The Trident Z kit is fairly popular, and so most boards have explicit support of this memory.

Our main difference is in tRFC, as shown here, though that doesn’t manifest in huge ways in these quick synthetics.

As for memory timing settings on the main Gaming K5 motherboard, we’ll publish those below:

Gaming K5 Memory Timings Trident Z CL14 3200 DC Trident Z CL14 3200 SC Ripjaws V CL15 2400 EVO X CL16 3200
Frequency 3200 3200 2400 3200
CAS Latency 14 14 15 16
tRCDRD 14 14 15 16
tRCDWR 14 14 15 16
tRP 14 14 15 16
tRAS 34 34 35 36
ADVANCED TIMING CTRL
tRC 48 48 50 55
tWR 24 24 19 24
tCWL 18 18 12 18
tRRD_S 6 6 4 5
tRRD_L 8 8 6 8
tWTR_S 4 4 4 4
tWTR_L 12 12 10 12
tRFC 312 312 312 312
tRFC2 192 192 192 192
tRFC4 132 132 132 132
tRTP 12 12 10 12
tFAW 39 39 28 50
tRCPAGE AUTO AUTO AUTO AUTO
tRDWR AUTO AUTO AUTO AUTO
tRDRDSC AUTO AUTO AUTO AUTO
tRDRDSD AUTO AUTO AUTO AUTO
tRDRDDD AUTO AUTO AUTO AUTO
tRDRD_SCL AUTO AUTO AUTO AUTO
tWRRD AUTO AUTO AUTO AUTO
tWRWRSC AUTO AUTO AUTO AUTO
tWRWRSD AUTO AUTO AUTO AUTO
tWRWRDD AUTO AUTO AUTO AUTO
tWRWR_SCL AUTO AUTO AUTO AUTO
tCKE AUTO AUTO AUTO AUTO
ProcODT AUTO AUTO AUTO AUTO
Command Rate AUTO AUTO AUTO AUTO
CAD BUS SETUP TIMING AUTO AUTO AUTO AUTO
AddrCMDSetup AUTO AUTO AUTO AUTO
CsOdtSetup AUTO AUTO AUTO AUTO
CkeSetup AUTO AUTO AUTO AUTO
CAD BUS DRIVE STRENGTH AUTO AUTO AUTO AUTO
ClkDrvStren AUTO AUTO AUTO AUTO
AddrCMDDrvStren AUTO AUTO AUTO AUTO
CsOdtDrvStren AUTO AUTO AUTO AUTO
CkeDrvStren AUTO AUTO AUTO AUTO
DATA BUS CONFIG AUTO AUTO AUTO AUTO
RttNom AUTO AUTO AUTO AUTO
RttWr AUTO AUTO AUTO AUTO
RttPark AUTO AUTO AUTO AUTO

Conclusion

One thing’s for certain: Going with multi-channel configurations is a must on the Raven Ridge APUs – at least, it is for the games we tested. If debating between 1x8GB stick and 2x4GB sticks, go 2x4GB. It will matter in the games we’ve tested, and likely many others. Keep in mind that, as usual, there are about a million variables at play. Switching motherboards, BIOS revisions, or memory kits will impact performance. A lot of the performance testing here is based upon auto XMP configurations, which means that further tuning can be done by the user or the motherboard manufacturers to boost performance. That’s not what our test goal was, though.

As a quick side-note, there’s no such thing as “dual-channel memory.” Or “quad-channel memory,” for that matter. There are dual-channel platforms, and you can use memory in two channels, but the memory itself does not dictate whether it can be used in dual-channel – that’s the platform’s job. If you buy two sticks of RAM and slot them into two (correct slots), they will run in dual-channel. If you socket four of that stick into an X299 or TR4 board, they will run in quad-channel.

Back to the content, though, memory certainly matters – but not every region can spend just a few dollars to go from 2933 to 3200. And besides, even if it’s “only” another $15, that doesn’t make it worth it. As the results show, 2933 can be perfectly adequate and barely disparate in performance; further still, adding $15 means you really might as well re-evaluate whether a dGPU + cheap CPU will achieve the same goals, because every dollar counts in these budget classes. There is no room for being wishy-washy. You either are buying Raven Ridge or you aren’t, and that will be predicated entirely on the budget. Memory is part of the budget.
