AMD R7 2700X Gold Edition Overclocking Headroom & Mini Review

By Published May 03, 2019 at 9:00 pm
  •

AMD didn’t claim that its R7 2700X Gold Edition would be special in any frequency or binning sense of the word, but exposure to the Intel i7-8086K has obviously led us to project our hopes onto AMD that it would be binned. This is, of course, a fault of our own and not of AMD’s, as it’s not like the company claimed binning, but we still wanted to try and see if we could get a golden Gold Edition sample. In this content, we’ll be establishing that the special 50th anniversary edition 2700X doesn’t come with higher clocks than stock (but it’s not like AMD claimed otherwise), then attempting to find more overclocking headroom than our 2700X and 2700 original samples.

For the most part, this CPU was released as a commemorative item. It has a laser engraving of CEO Lisa Su’s signature (not an actual signature), which clearly illustrates its purpose as more of one for display than some special bin. Despite the 50th Anniversary gift being gold, it would seem the 2700X Gold Edition is named more for its bundling with The Division 2 Gold Edition and a 1-year season pass, alongside World War Z. If you were buying these anyway, it’s not a bad deal. If not, you’d still be better off buying a 2700 and overclocking it – purely from a financial standpoint – than spending the extra money on the Gold Edition. That said, you wouldn’t get the box or laser-etched name, so once again, this is very obviously priced higher for AMD purists and fans.

GN CPU Test Bench 2019

  Product Courtesy Of
CPU This is what we're testing! GN, Intel, & AMD
Motherboard See article, changes per CPU Various
RAM Corsair Vengeance LPX 4x8GB 16-18-18-36 Corsair
Video Card EVGA RTX 2080 Ti XC Ultra EVGA
PSU EVGA SuperNOVA T2 1600W EVGA
CPU Cooler NZXT Kraken X62 280mm NZXT
SSD Samsung 860 EVO 250GB GN
Project/Game SSD Samsung 860 PRO 1TB GN

Motherboards used are varied based upon platform. Where compatible, we used the following:

  • ASUS Maximus XI Hero Z390
  • ASUS Crosshair VII Hero X470
  • MSI MEG X399 Creation

Although we’d all love to run numerous test benches simultaneously, we have determined that GPU silicon variance can significantly alter results even within the same video card model. As such, we only one run bench at a time, and we always use the same GPU. Driver version 417.71 is used. Adaptive sync is not used in testing.

MCE is always disabled on test platforms, ensuring that turbo boost durations should be running within specifications set by the CPU manufacturer. We also try to keep an eye out for other motherboard trickery, like MSI’s oft-boosted BCLK, and then reset to stock settings when applicable. XMP is used on the Corsair memory in our test benches.

Frequency Validation

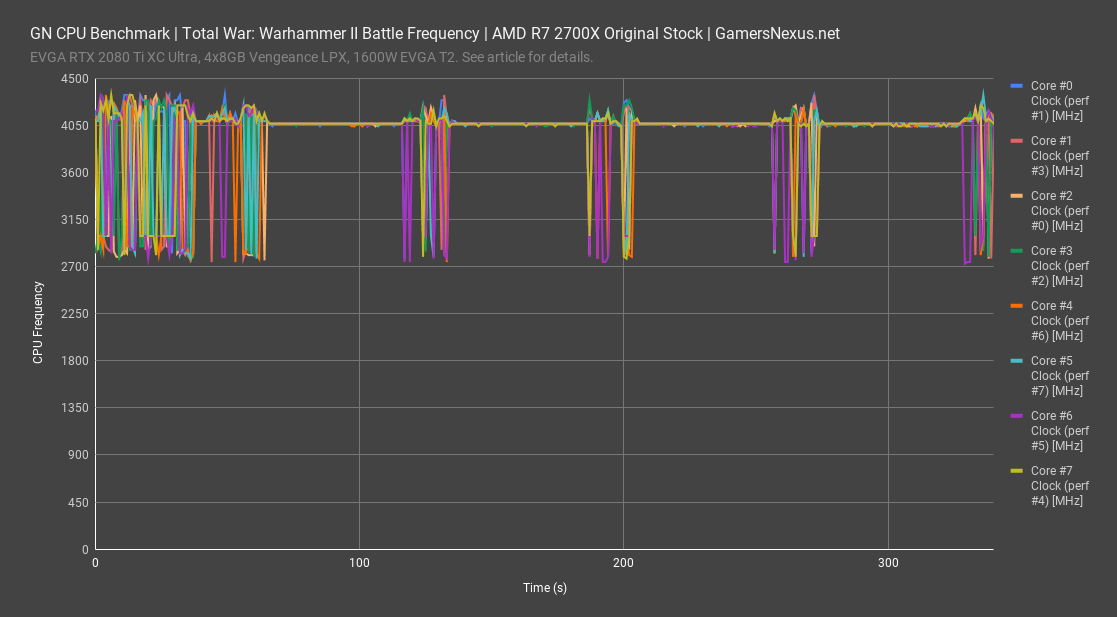

tww battle frequency comparison 2700x original

AMD doesn’t claim a frequency difference, so there’s no reason to expect one – but we still wanted to definitively demonstrate the lack or existence of a frequency change in stock operation. We’ll start with frequency validation to demonstrate how all-core behaves on the stock 2700X and the Gold Edition 2700X. In Total War: Warhammer II’s battle test, we observed load frequency at about 4066MHz all-core on the 2700X stock CPU, with single threads under low load boosting to about 4340MHz max, although that was not all-core. The 2700X Gold CPU did almost exactly the same thing. Variance comes into play marginally, but the end result is within 10-20MHz all-core at all times, depending on load level.

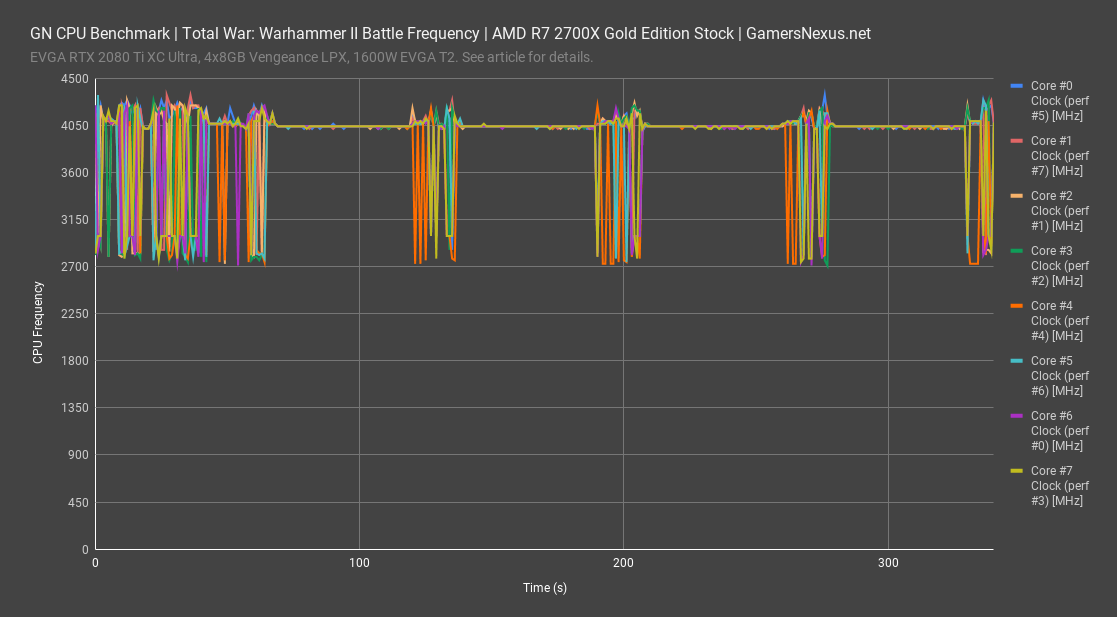

tww battle frequency comparison 2700x gold

Blender

blender gn logo r7 2700x gold edition

Lest there be any doubts about the 2700X Gold’s stock performance, here’s a quick result listing for our in-house Blender benchmarks: With the GN Logo ray-traced logo render, we observed a time requirement of 28 minutes stock and 28.3 minutes with the gold edition, which is within error margins. These two are the same, unsurprisingly. Just for additional proof, the GN monkey head render also puts the 2700X and the 50th Anniversary Edition within 0.1 minute of each other, or 6 seconds. It’s the same result on the same CPU.

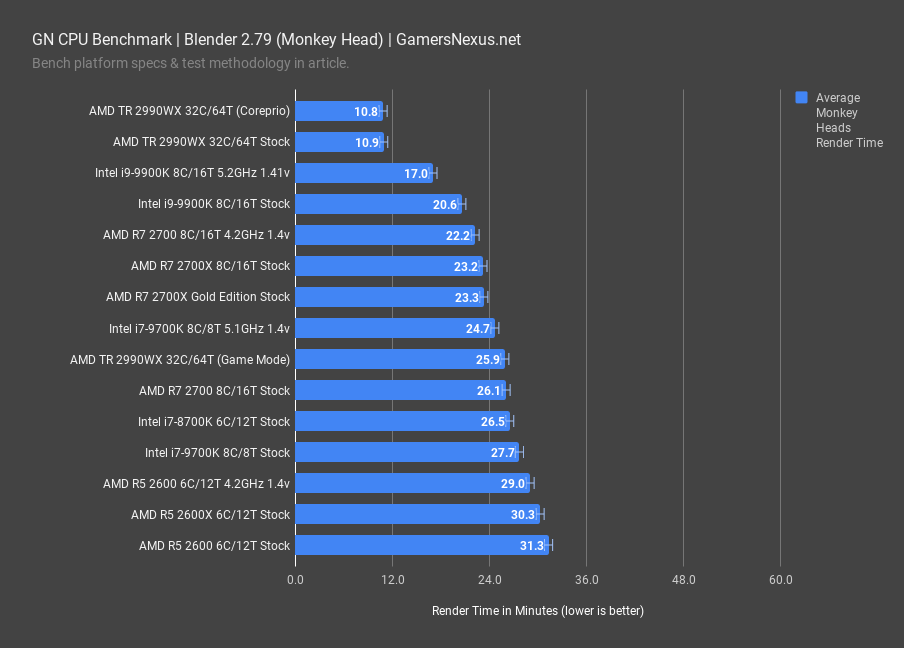

blender monkey heads r7 2700x gold edition

GTA V

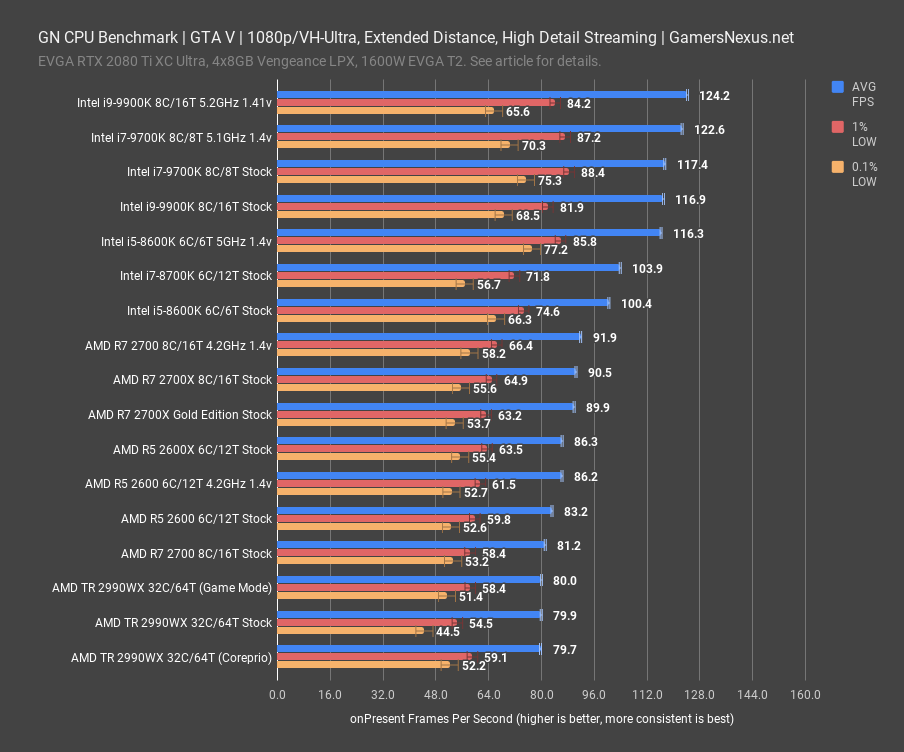

gta v 1080p r7 2700x gold edition

GTA V at 1080p also produced identical results, at 90FPS AVG for the 2700X original and 2700X Gold Edition CPUs. The results are within margin of error run-to-run, so we can demonstrate again that these two CPUs are no different from each other.

TWW2 Battle

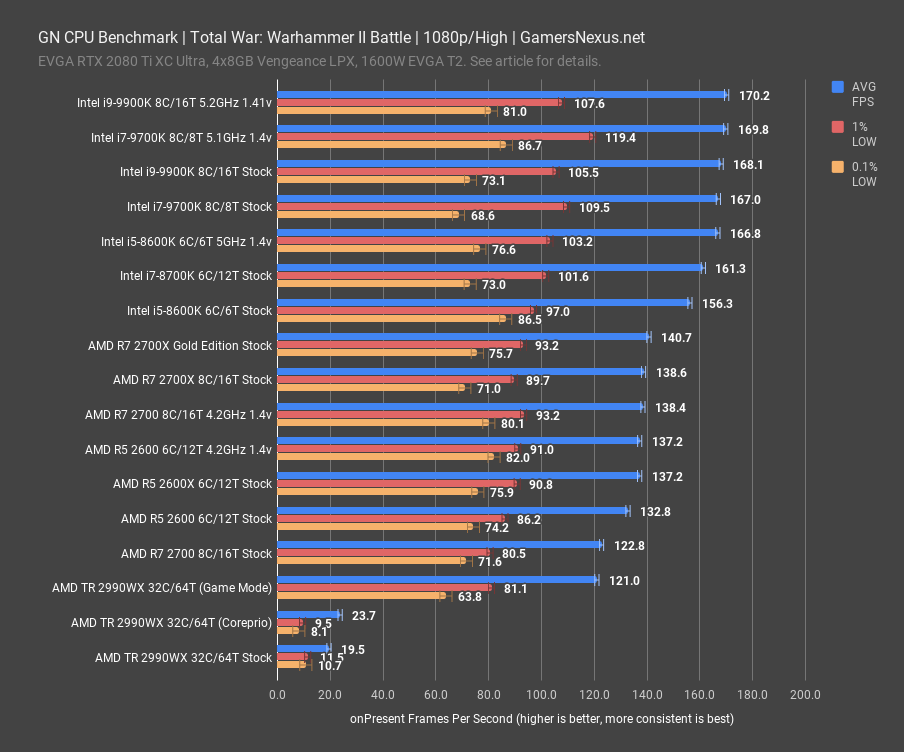

tww battle 1080p r7 2700x gold edition

Unsurprisingly, Total War: Warhammer II’s battle puts us within margin of error again, seeing as they’re literally the same processor under the IHS. The 2700X stock runs at 139FPS AVG, with the Gold Edition at 141FPS AVG. We’re within our error tolerance in this game. The lows are also within margin of error. No change, here.

Overclocking

Overclocking is the real question, here. When Intel did its 8086K CPUs, we remarked that they really weren’t worth buying unless you wanted a semi-guaranteed overclock at or above 5GHz. With a normal 8700K, chances were that you were within 100MHz of the 8086K, so the cost difference was tough to justify.

It’s even harder to justify here, because Ryzen is already largely maxed-out on frequency out-of-the-box. Overclocking has a dangerous territory where settling on too low of an all-core OC will result in worse performance in some applications, because XFR and boost can hit 4.2GHz and above. It won’t be on all cores, but an all-core OC will cut off the top-end of that range.

  Frequency Voltage Pass/Fail
Step 1 4.2 1.4 Fail
Step 2 4.2 1.4125 Fail
Step 3 4.2 1.42 Overheating
Step 4 4.1 1.3975 Pass
Step 5 4.1 1.38125 Pass
Step 6 4.1 1.375 Pass
Step 7 4.1 1.344 Pass
Step 8 4.1 1.275 Pass
Step 9 4.1 1.2 Fail
Step 10 4.1 1.25 Pass
Step 11 4.1 1.237 Pass
Step 12 4.1 1.22 Fail

We were disappointed in our 2700X Gold Edition sample. The hope was that it’d be really good, but it’s just not. We couldn’t maintain 4.2GHz even at 1.4125V, and going beyond this would require chilled liquid or a bigger loop than our 280mm CLC. Our 2700 non-X actually performs better, hitting 4.2GHz at 1.4V.

After the disappointment of worse overclocking headroom than a product that costs $220 to the Gold Edition’s $330, we decided to undervolt instead. This table shows the steps taken. We eventually found the CPU to be stable at about 1.24V and 4.1GHz all-core, although at this point, you may be better sacrificing all-core for stock frequencies to hit XFR instead. The only benefit of a 4.1GHz all-core OC is if your workloads are always all-core, like Blender. Either way, both CPUs settle around the same voltage and frequency. The 2700X non-Gold required 1.25V at 4.1GHz, whereas Gold did it at 1.24V. That’s… something, we guess, it’s just not something we wanted.

For what it’s worth, the R7 2700X Gold Edition does come with some small bonuses, like World War Z and The Division 2 Gold Edition – after which the Gold Anniversary CPU is named – with a year-1 season pass. It also comes with the fake signature on the IHS, likely added after initial production of the 2700X that’s probably now overstocked as we lead into 3000-series.

If you had been in the market for a CPU and were wondering if the Gold Edition is somehow special, purely from a hardware standpoint, the answer is “no,” and further, “save your money” unless falling into a few categories. Those categories are: (1) You’re an AMD fan to the point that this product has some sentimental or personal meaning to you and (2), you were going to buy the included games anyway, at which point this would be a cost-saving move.

That’s about it for this one. Pretty simple.

Editorial, Testing: Steve Burke
Video: Andrew Coleman
