AMD RX 470 & RX 460 Full Specs, New Release Date

By Published July 29, 2016 at 12:00 am

AMD says the majority of its buyers prefer GPUs in the $100-$300 price-range, and as such, the company has shifted its launch away from “halo” products and toward that affordable segment. The focus for the RX 470 is on players sticking with 1080p, allowing the RX 480 to focus on the 1440p gamers.

The RX 470 uses the Polaris 10 GPU and has the same architecture as the RX 480, including compute pre-emption and asynchronous shaders, but is cut-down in stream processor count and clock-rate. The RX 470 will host 32 CUs, as opposed to the 36 CUs of the RX 480, and that puts us at 2048 stream processors. Knowing that each CU has 64 stream processors, none of this is actually new information yet – we'd already reported/calculated all this in our RX 480 review.

The new stuff, though, is the clock-rate: The RX 470 will operate at 1206MHz boosted and 926MHz base with its 2048 stream processors. 128 TMUs are on the 470 – for perspective, the 480 had 144 – and it's operating with 32 ROPs. Memory operates on a 256-bit interface with a 6.6Gbps effective memory speed, and will run a capacity of 4GB of GDDR5. The memory bandwidth comes out to 211GB/s. Display interfaces include HDMI 2.0 and DisplayPort support for HDR (1.4) and HBR (1.3). TDP is listed as 120W.

AMD RX 460, RX 470, & RX 480 Specs

  AMD RX 480 AMD RX 470 AMD RX 460
Architecture Polaris 10 Polaris 10 Polaris 11
Compute Units (CUs) 36 32 14
Stream Processors 2304 2048 864
Base / Boost Clock 1120MHz / 1266MHz 926MHz / 1206MHz 1090MHz / 1200MHz
COMPUTE Performance >5 TFLOPS Up to 4.9TFLOPs Up to 2.2TFLOPs
Graphics Command Processor (GCP) 1 1 1
ACEs 4 4 (?) 2
HWS 2 2 (?) 2
TMUs 144 128 56
ROPs 32 32 16
Geometry Processors 4 4 (?) 2
Peak Texture Filter Rate 182.3GT/s 154.4GT/s 57.6GT/s
Peak Pixel Filter Rate 40.5GP/s 38.6GP/s 19.2GP/s
L2 Cache 2MB ? 1MB
LSU 576x32b ? 256x32b
VRAM Capacity 4GB GDDR5 @ 7Gbps
8GB GDDR5 @ 8Gbps
4GB GDDR5 2GB GDDR5
Memory Interface 256-bit 256-bit 128-bit
Memory Speed 7Gbps (4GB model)
8Gbps (8GB model)
6.6Gbps 7Gbps
Memory Bandwidth 224GB/s (4GB model)
256GB/s (8GB model)
211GB/s 112GB/s
TDP 150W 120W* 75W
Power Connectors 6-pin 6-pin None
(Slot only)
Display Port 1.3 HBR / 1.4 HDR 1.3/1.4 HDR 1.3/1.4 HDR
Release Date June 29 August 4 August 8

Polaris 10 vs. Polaris 11 Specs & Architecture

  Polaris 10 Polaris 11
Compute Units (CUs) 36 16
COMPUTE Performance “>5 TFLOPS” “>2 TFLOPS”
Memory Interface 256-bit 128-bit
Architecture Gen 4 GCN Gen 4 GCN
Playback Support 4K encode/decode 4K encode/decode
Output Standard DP1.3/1.4 HDR DP1.3/1.4 HDR

Just a reminder: Don't fall for the trap that so many people do. You cannot compare AMD and nVidia cards numbers-for-numbers, because the architecture is different. This goes for cores as much as it goes for TDP. AMD and nVidia differ in their calculation of TDP; 120W does not = 120W between brands. TDP is also not a measurement of actual power draw – you'll need to wait for our tests for that.

Also, note that AMD's specified TDP for the RX 470 has changed. The card was originally slated for a 110W TDP (during the Macau press event, just before Computex), but has now been moved to a 120W TDP. Consider also that the TMU count has dropped from 64 to 56, and that the memory speed has dropped to 6.6Gbps from 7Gbps. These original metrics were provided well before finalization of the card, so it's likely that the changes were just a result of creating a press presentation months in advance of launch.

The memory subsystem of the RX 470 is the same as the RX 480, aside from the effective speed. Check our written review on that card for more on delta color compression and other memory efficiency increases.

The RX 470 will be available on August 4th and is priced at... to be determined. AMD's holding prices until release date, or slightly before. The company tells us that the RX 470 offers approximately 1.5x gains over the generations-past 270.

AMD has provided an internal RX 470 benchmark (vs. R7 270, despite the typographical error in AMD's slide):

amd-rx-470-benchmark-internal

The above shows the RX 470's comparative performance in Battlefield 4, DOOM, Fallout 4, Hitman, and Total War: Warhammer -- but take the tests with a grain of salt, as they are conducted internally by AMD. We'll validate in our own lab once we've got a card. GN doesn't have an R7 270, but we do have the R9 270X and may revive the old dog for these tests.

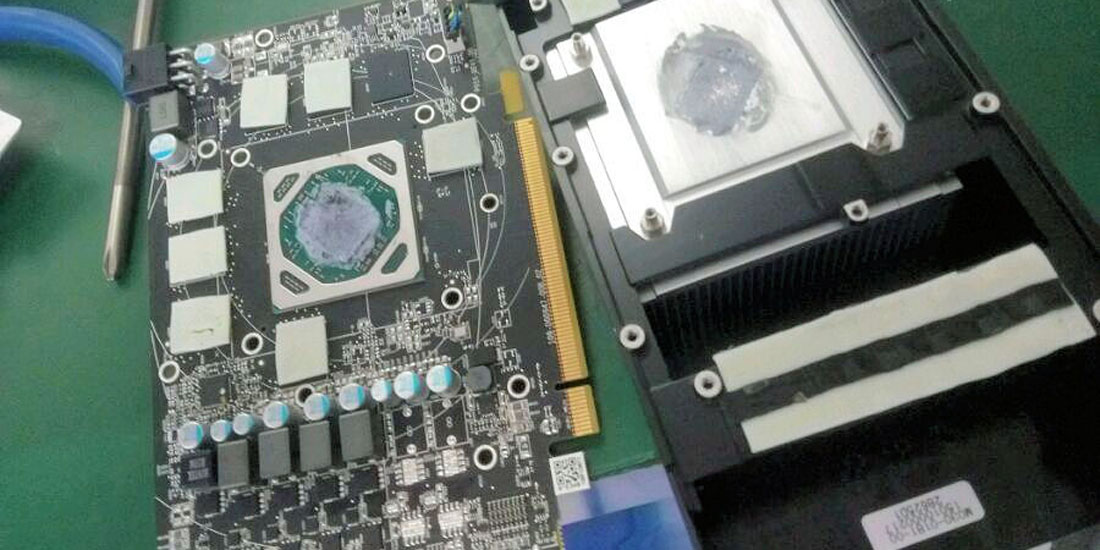

Some alleged leaked photos of RX 470 partner cards have already been released, shown here:

sapphire-rx-470-leak-1

sapphire-rx-470-leak-2

As for the RX 460, that card will be on Polaris 11, will host 14 CUs with 896 stream processors, clocked at 1200MHz boost and 1090MHz base. The RX 460 will have 56 TMUs and 16 ROPs. Performance is up to 2.2TFLOPs – again, Polaris 11 – and memory will run at an effective 7Gbps on 2GB or 4GB of GDDR5, with the interface 128-bits wide. That puts memory bandwidth at 112GB/s. We've seen some confusion lately as to how memory bandwidth is calculated; just as a reminder, it's pretty simple: You first divide the bus by 8 to convert bits to bytes, then multiply the actual memory speed – not the same as the effective speed – by the quotient, by 2 for DDR, and by 2 again for GDDR5. That gives us 112GB/s.

TDP for the RX 460 is less than 75W, so it can function entirely off of PCIe slots. Price is also TBD. the card will be available on August 8th.

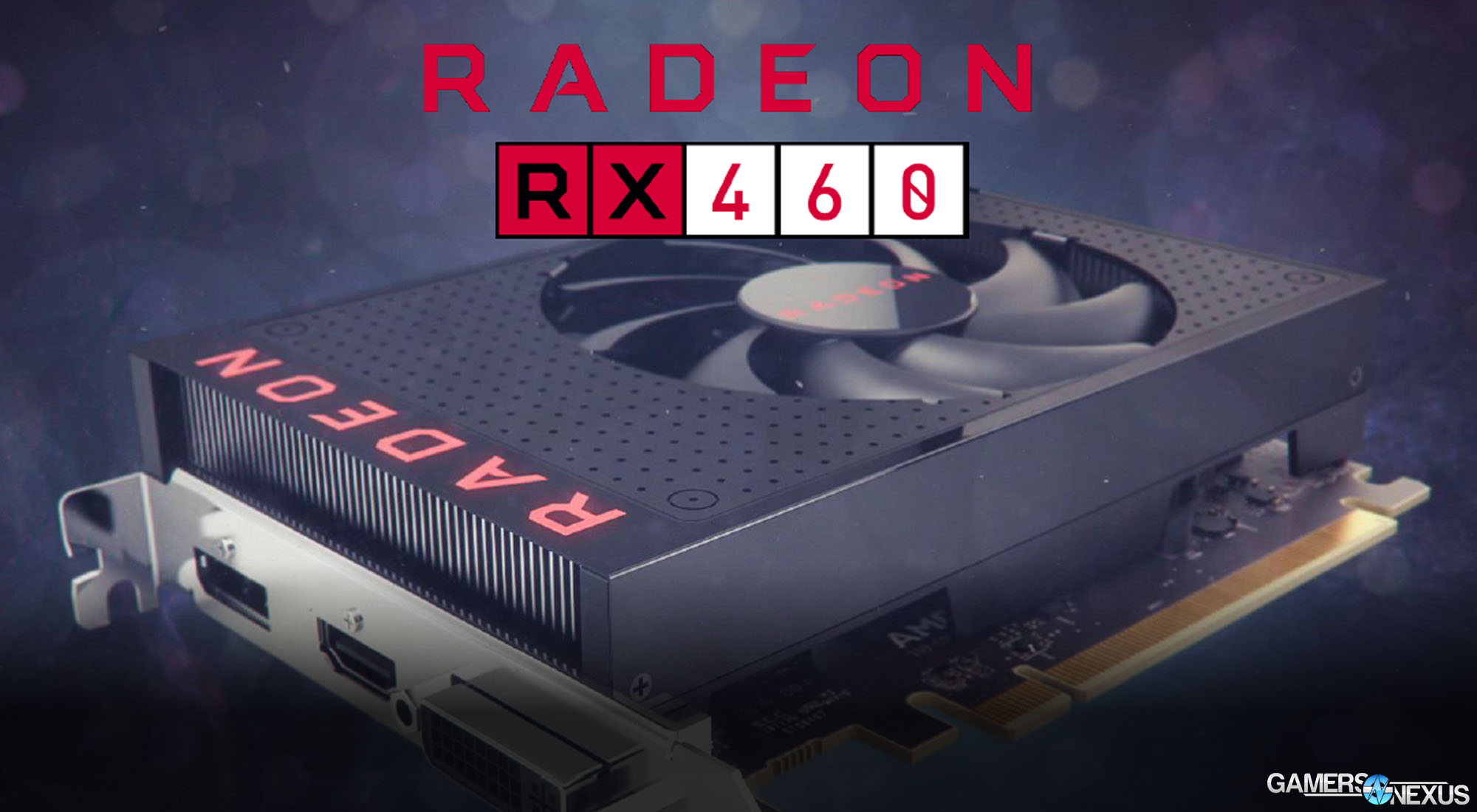

amd-rx-460-slide

AMD's presentation suggests that the RX 460 is targeted at eSports gaming, and further states that the card pushes "90+ FPS [at] 1080p High Settings."

amd-rx-460-bench-slide

We also asked about notebook chips. Like the GTX 980, AMD will be bringing its full Polaris chips to laptops. They are not cut-down models. The notebook models will have lower GPU TDP and a lower throttle point on thermals (e.g. 35W on notebook versus 48W on desktops, for the chip), but will otherwise be the same. It will be up to manufacturers to provide adequate cooling solutions, as is always the case. TDP has gotten so low these days that it's possible to actually put desktop parts into notebooks, dropping the suffixed -M branding. AMD is hoping to leverage the 470 and 460 to get back into the notebook arena.

We'll be testing both the 4GB and 8GB models of the RX 470. It's possible that the card may become ROPs limited in many games, but we generally do see some differences in 1% low metrics when running VRAM-intensive games.

AMD missed launch on the RX 470 and 460, which were targeted at, quote, “Mid-July” and “End of July,” respectively. AMD has moved the cards to August 4 and August 8 for launch, respectively. We are still waiting on pricing information. The RX 470 & RX 460 will be partner cards. There will be no "reference" model.
