Destiny 2 GPU Benchmark: Massive Uplift Since Beta

Posted on October 25, 2017

As stated in the video intro, this benchmark contains some cool data that was exciting to work with. We don’t normally accumulate enough data to run historical trend plots across various driver or game revisions, but our initial Destiny 2 pre-launch benchmarks enabled us to compare that data against the game’s official launch. Bridging our pre-launch beta benchmarks with similar testing methods for the Destiny 2 PC launch, including driver changes, makes it easier to analyze the deviation between CPU, driver, and game code optimizations.

Recapping the previous tests, we already ran a wide suite of Destiny 2 benchmarks that included performance scaling tests in PvP multiplayer, campaign/co-op multiplayer, and various levels/worlds in the game. Find some of that content below:

NOTE: Our Destiny 2 CPU benchmark is now live.

Some of our original graphics optimization work also carried forward, allowing us to better pinpoint Depth of Field on Highest as one of the major culprits to AMD’s performance. This has changed somewhat with launch, as you’ll find below.

We’re sticking with FXAA for testing. Bungie ended up removing MSAA entirely, as the technique has been buggy since the beta, and left only SMAA and FXAA in its place.



Test Platform

GN Test Bench 2017NameCourtesy OfCost
Video CardThis is what we're testing--
CPUIntel i7-7700K 4.5GHz lockedGamersNexus$330
MemoryCorsair Vengeance LPX 3200MHzCorsair-
MotherboardGigabyte Aorus Gaming 7 Z270XGigabyte$240
Power SupplyNZXT 1200W HALE90 V2NZXT$300
SSDPlextor M7V
Crucial 1TB
GamersNexus-
CaseTop Deck Tech StationGamersNexus$250
CPU CoolerAsetek 570LCAsetek-

BIOS settings include C-states completely disabled with the CPU locked to 4.5GHz at 1.32 vCore. Memory is at XMP1.

One final note: We had to change logging tools for this benchmark as Destiny 2 has continued its lock-down on third-party software. This means that our 1% low and 0.1% low metrics may not be directly translatable to the previous beta benchmarks.

Video Cards Tested

Destiny 2 1080p Benchmarks (Highest) – RX Vega 56 vs. GTX 1070, 1060, 580

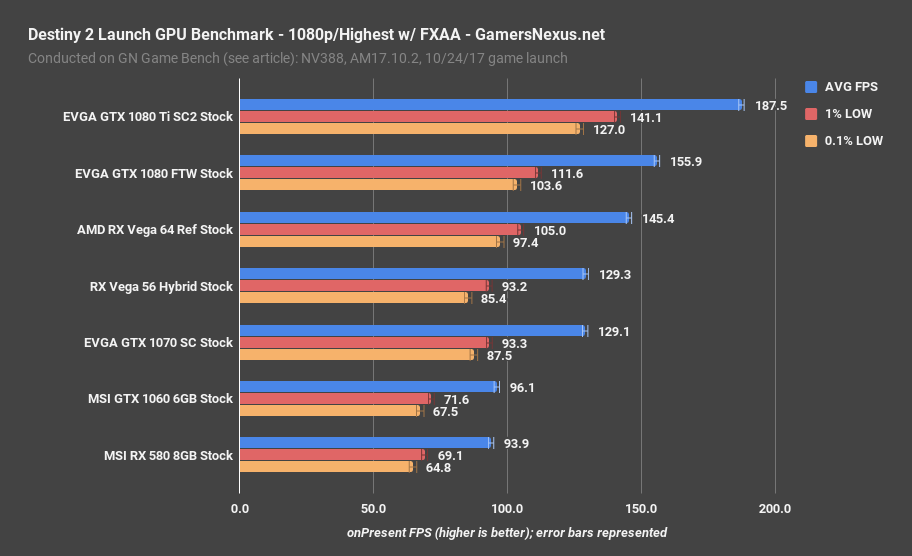

destiny 2 gpu benchmark 1080p highest

1080p/Highest starts us off, as that’s going to be the most popular configuration for the game. In this configuration, we’re bumping into the framerate wall for the 1080 Ti, which encounters the 200FPS cap during some parts of the benchmark. Despite encountering an artificial cap, the 1080 Ti leads the 1080 by approximately 20%, though we’ll have to look toward 1440p to understand uncapped scaling.

The GTX 1080 operates a 156FPS AVG, leading the RX Vega 64 card by 7.2%, marking substantial uplift from Vega’s previous 122FPS AVG in the beta and with the previous driver revision. That’s roughly a 19% performance increase from beta to full launch for Vega 64, bringing Vega 64 past the GTX 1070 and closer to the GTX 1080.

Vega 56 runs roughly tied with the GTX 1070 SC in all walks of performance, including frametime performance, with the GTX 1060 6GB and RX 580 8GB cards also near one another in all three of our reported metrics.

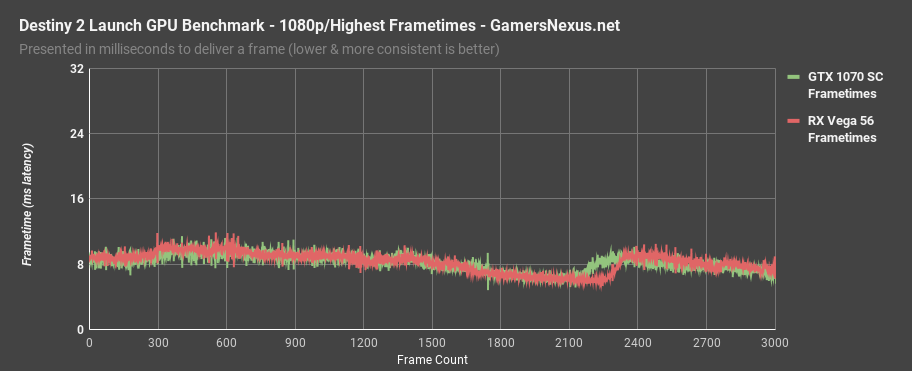

destiny 2 1070 v56 frametimes 1080phighest

Here’s a frametime plot of the Vega 56 and GTX 1070 cards with these settings, just to give a better understanding of performance. As always, we’re looking for consistency, here, and note that lower, more consistent numbers are better.

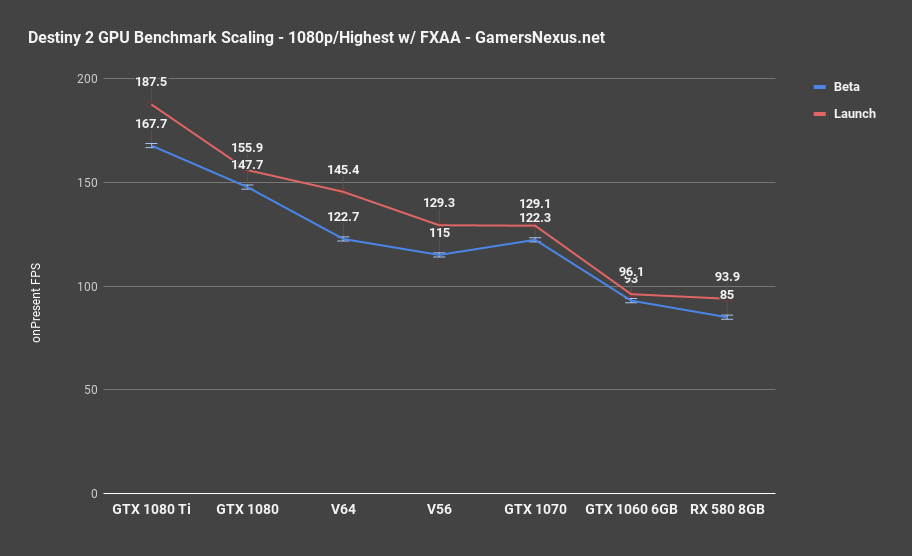

destiny 2 1080p highest beta vs launch

This next chart is cool. For scalability versus the beta, this line plot shows the average FPS of each GPU versus the beta AVG FPS, which was tested with earlier driver and game revisions. NVidia primarily benefits in the 1080 Ti, with the 1060, 1070, and 1080 posting smaller gains in the range of 3-6%. As you’ll learn in a moment, these gains are primarily due to a CPU bottleneck loosening. AMD’s Vega 64 and Vega 56 clearly benefited from the either the graphics options changes, the AMD drivers, or both, registering 12-19% performance uplift, with these settings. The Polaris RX 580 also gains reasonably. This difference is enough to swing V56 tied with the 1070, as opposed to the previous deficit against the 1070.

Destiny 2 1440p Benchmarks (Highest) – Vega 56, 64 vs. GTX 1080, 1070

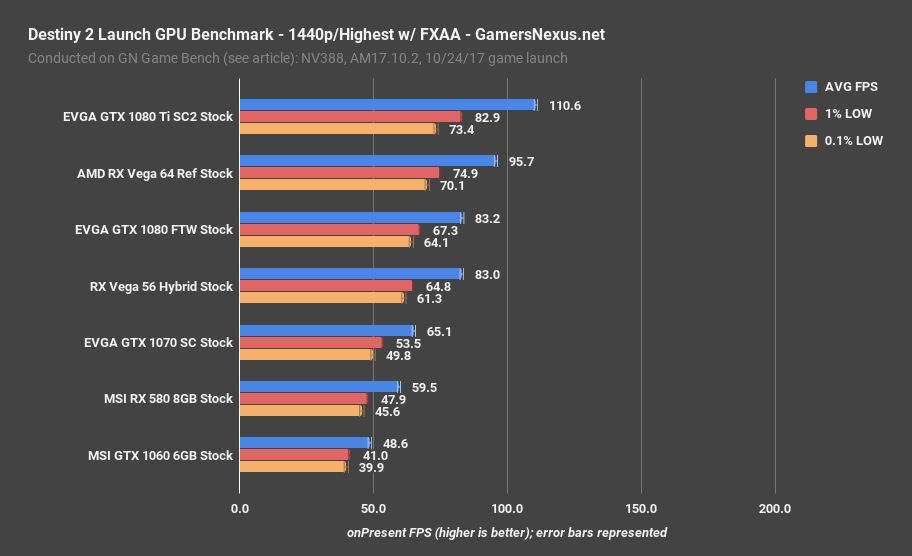

destiny 2 gpu benchmark 1440p highest

At 1440p/Highest, we plotted a similar performance stack, but note that this will switch-up once we get to the High results. The 1080 Ti manages 111FPS AVG, posting a 33% lead over the GTX 1080 FTW, with Vega 64 leading the GTX 1080 by 15%. This is a little different from the previous results.

Vega 56 is also functionally tied with the performance of the GTX 1080 FTW at 1440p/Highest, plotting an 83FPS AVG, and keeping lows consistent. This places Vega 56 in an advantaged position versus the 1080 and 1070 and, if you can find it for MSRP, makes it the better competitor at its price-point for these particular settings – but it gets more complex than that, as you’ll see in a moment.

As for scalability versus the beta, here’s what we have:

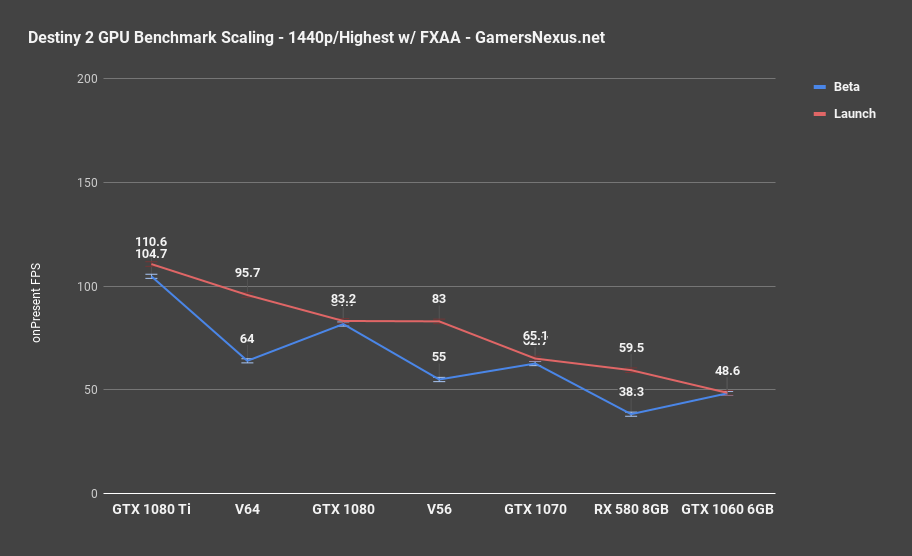

destiny 2 1440p highest beta vs launch

The nVidia cards show almost no scaling here, partly because nVidia already had game-ready drivers at the time of beta launch, so there’s less ground for GTX devices to gain. Vega 56 posts a gain of 50.9% in average FPS for our test, close to AMD’s boasted 42% gains with the driver, and Vega 64 posts 49.5% scaling. Although this isn’t an unprecedented gain from a driver update and game update, the two compounded together make for a large leap on the line plot.

Explaining & Analyzing the Results

Here’s where that data gets interesting. If you recall the 1080p comparison between the beta and launch, nVidia cards were posting more notable gains than in the 1440p chart, where we saw nearly 0 gains. Remember that the 1080 Ti had the largest gains of all the nVidia cards, with the GTX 1060 posting nearly 0 uplift.

That’s because of a CPU uplift in Destiny 2, which we also have plotted in our forthcoming Destiny 2 CPU benchmark. This CPU uplift has alleviated some of the bottlenecking on the 1080 Ti – hence the bigger gains – but obviously hasn’t helped at the 1060-level, because we were already limited by the GPU. This is an instance where, at 1080p/Highest, the gains look like they do on the GPUs not because of GPU uplift, but because of alleviated constraints in the CPU pipe. That’s why the two plots are so different.

Destiny 2 Benchmark 1440p (High) – GTX 1080 Ti vs. 1080, 1070, RX Vega

destiny 2 gpu benchmark 1440p high

Reducing settings to High, but staying at 1440p, we see the GTX 1070 catch back up to the RX Vega 56, leading marginally, with the GTX 1080 leading the Vega 64 card by 14%. The 1060 6GB and RX 580 8GB cards are within a few FPS of one another, with the GTX 1060 6GB card leading by 2.7%.

destiny 2 1440p high beta vs launch

And here’s that beta vs. launch scalability chart. It now becomes clear that AMD had the most to gain when running highest settings between launch and beta, which is something that we highlighted in our original Destiny 2 beta research and coverage. During the beta, we root-caused this to Depth of Field on Highest, which tanked AMD GPU performance.

destiny2 gpu bench settings rx 580

You can see that in our beta graphics optimization guide, where changing only Depth of Field from Highest to High could get us 82% of the way to switching all options to High. Something in AMD’s drivers or Destiny’s code has resolved this problem for AMD hardware. That’s the explanation of the performance we’re seeing.

Destiny 2 GPU Benchmark 4K (Highest)

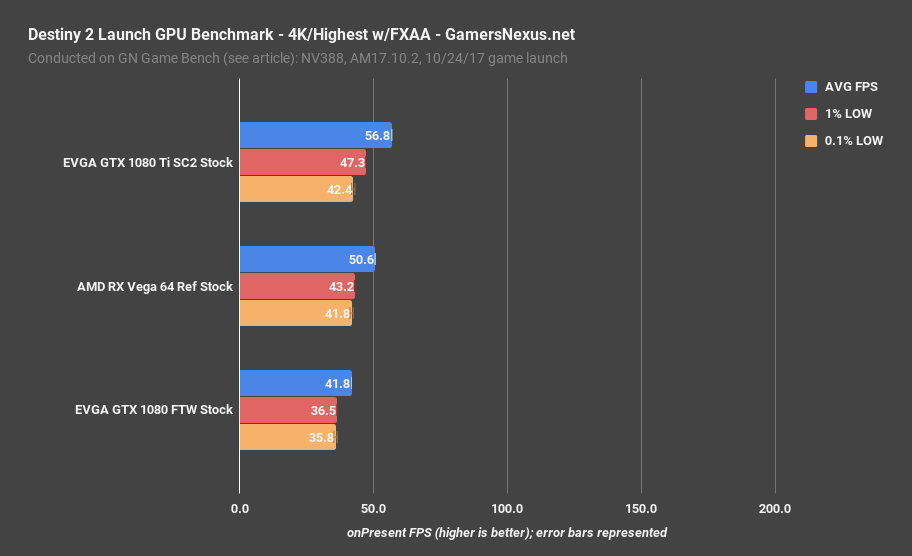

destiny 2 gpu benchmark 4k highest

Our final few tests are at 4K, with highest plotting the 1080 Ti about 1-2FPS ahead of the beta, at 56.8FPS AVG, leading the 1080 by 36% and the V64 by 12%. Vega 64 outmatches the GTX 1080, in this instance.

destiny 2 4k highest beta vs launch

In terms of scaling, Vega 64 benefits the most, moving from 32FPS AVG to 50.6FPS AVG with the launch drivers and launch game version.

Destiny 2 Graphics Card Benchmark 4K (High)

destiny 2 gpu benchmark 4k high

At 4K High, as the previous tests have informed us, this changes again: Vega 64 is now behind the GTX 1080, with the 1080 leading by 13%. The GTX 1070 is now nearly tied with Vega 56, with Vega 56 slightly ahead.

Conclusion

We’re seeing some CPU uplift from the beta, resulting in an upward pull on results across the board. This is coupled with major modifications to AMD’s driver implementation, which AMD itself earmarks as offering “up to 43%” performance improvement. Our numbers have largely validated AMD’s, and we believe we’ve pinpointed most of said uplift to shader optimizations with some of the Highest settings. Depth of Field seems to be of particular note, as indicated by our beta graphics optimization guide. Retaining all Highest settings, but dropping DOF to High, our beta testing suggested that 82% of “High” performance could be gained.

It seems as if either AMD or Bungie optimized how some of these Highest settings are handled on AMD hardware, offering some of the near-50% boosts that we’re seeing over beta performance.

NVidia’s uplift in these tests (versus beta) largely seem to correspond with CPU performance uplift on the whole, which could be caused by a couple of things – game-level changes being one of them.

Our CPU benchmark is forthcoming and targeted for publication within the next 24 hours. Keep an eye out for that.

Editorial: Steve Burke
Video: Andrew Coleman
