New GPU Cooling Bracket: NZXT Kraken G10 Specs & Preview

By Published November 27, 2013 at 3:13 pm
  •

NZXT's new Kraken G10 video card cooling bracket is now available at $30. The housing bracket is meant for use alongside any Asetek-supplied CLC, including NZXT's own Kraken X40 & X60 coolers, Antec's Kuhler 920 & 620 products, and Thermaltake's Water-brand coolers.

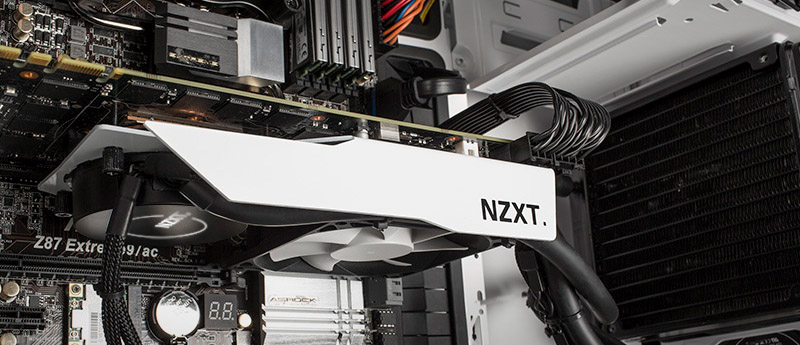

The Kraken G10 is simply a mounting bracket for a liquid cooler, but also contains a 92mm cooling fan for the video card VRM. Standalone, the G10 does not ship with a liquid cooling solution, so you'll have to mount one of your Asetek-supplied coolers to the G10 for use as a video card CLC.

NZXT Kraken G10 GPU Cooler Specs

Model Number RL-KRG10-W1 (White)
RL-KRG10-B1 (Black)
RL-KRG10-R1 (Red)
Dimensions 177 (W) x 32.5 (H) x 110.6 (D) mm
Fan Bearing Sleeve
Fan Connector 3-Pin
Compatibility Nvidia : GTX 780, 770, 760, Titan, 680, 670, 660Ti, 580, 570, 560Ti, 560, 560SE
AMD : R9 290X, 290, 280X, 280, 270X, 270 HD7970, 7950*, 7870, 7850,
6970, 6950, 6870, 6850, 6790, 6770, 5870, 5850, 5830

Compatibility NZXT : Kraken X60, Kraken X40
Corsair : H110, H90 , H55 , H50
Antec : KUHLER H2O 920V4, KUHLER H2O 620V4, KUHLER H2O 920, KUHLER H2O 620
Thermaltake : Water 3.0 Extreme, Water 3.0 Pro, Water 3.0 Performer Water 2.0 Extreme,
Water 2.0 Pro, Water 3.0 Performer
Zalman : LQ-320, LQ-315, LQ-310
Fan Dimensions 92 (W) x 92 (H) x 25 (D) mm
Fan Input Power 2.16W
Fan Current 0.18A
Fan Speed 1500 ± 10% R.P.M.
Fan Voltage 12V DC
Warranty 2 Years (Removing your stock cooler will potentially void your GPU warranty)



Shipping in black, white, and red (where's the green, NZXT?), the new G10 bracket is compatible with any modern video card using reference boards from nVidia and AMD. Using the same Asetek mounting mechanism as the Kraken X40 & X60 that we reviewed, the G10 is installed by removing the stock cooler from a reference board, mounting your separate CLC, then simply tightening some screws and mounting plates to the GPU. The VRM fan is pre-installed.

An aftermarket video card cooler will decrease thermals on the silicon, which in turn decreases noise emissions (from the stock fan attempting to keep up) and improves overall endurance of the GPU die.

The G10 will be available on Newegg shortly. See NZXT's page has further details.

- Jim Vincent.

Last modified on November 27, 2013 at 3:13 pm
