NVIDIA GTX 750 Ti & 750 Specs, Benchmarks, & TITAN Black

By Published February 18, 2014 at 8:50 am
  •

NVIDIA's GTX 750 Ti has been rumored for about a month now, and as of today, most of those rumors are confirmed. Today sees the announcement of NVIDIA's Maxwell GTX 750 Ti, GTX 750, and TITAN Black specs and internal benchmarks; most interestingly, the 750 Ti and 750 introduce potentially game-changing graphics processing to low-TDP, passively-cooled HTPCs.

The 750 Ti, 750, and TITAN Black should all be available as of this posting (release date: 2/18/14).

Let's start with the specs table, then move to the block diagrams and unique implementations.

NVIDIA GTX 750 Ti vs. GTX 750, 650 Ti & Titan Black vs. Titan Specs

GPU Spec GTX 750 Ti GTX 750 GTX 650 Ti Boost GTX 650 Ti GTX TITAN Black GTX Titan
GPU GM107 GM107 GK106 GK106 GK180 GK110-400
CUDA Cores 640 512 768 768 2880 2668
BCLK 1020MHz 1020MHz 980MHz 928MHz 889MHz 837MHz
Boost CLK 1085MHz 1085MHz 1033MHz N/A 980MHz 876MHz
Memory Speed 5.4Gbps 5.0Gbps 6Gbps 6Gbps 7Gbps 6Gbps
Memory Config 1GB / 2GB
128-bit
1GB
128-bit
1GB / 2GB
192-bit
1GB / 2GB
128-bit
6GB
384-bit
6GB
TDP 60W 55W 140W 110W 250W 250W
Power Connectors None None 6-pin 6-pin 6-pin + 8-pin 6-pin + 8-pin
MSRP $140 / $150 $120 $150 / $170 $150 $1000? $1000
Release Date February 18, 2014 February 18, 2014 March, 2013 October, 2012 February 18, 2014 February, 2013
GPU GK107 Kepler GM107 Maxwell
CUDA Cores 384 640
BCLK 1058MHz 1020MHz
Boost CLK N/A 1085MHz
GFLOPs 812.5 1305.6
Texture Units 32 40
Texture fill-rate 33.9 Gigatexels/sec 40.8 Gigatexels/sec
Memory CLK 5000MHz 5400MHz
Memory Bandwidth 80 GB/s 86.4 GB/s
ROPs 16 16
L2 Cache Size 256KB 2048KB
TDP 64W 60W
Transistors 1.3B 1.87B
Die Size 118mm^2 148mm^2
Manf. Process 28nm 28nm

Keen observers should notice two things: The new architecture is still 28nm and the new video card is not nVidia's Flagship for this generation; in past years, nVidia has launched their flagship card first, equipped with the best of their new architecture. This time around, we're getting an entry-level device first and a less advanced version of what will ultimately ship on higher-end cards. It is likely that the fab was not prepared for lower-nanometer process just yet, and as such, we're seeing the 28nm GTX 750 Ti. I would wager that this is a lead-in to smaller process GPUs in the coming months. In addition to this, the lower-end card will be in higher-demand by consumers -- especially given the market's move toward mini-computing right now (which may or may not be a trend, we'll see how Steam Machines do), and nVidia wants to capitalize on that.

The 750 Ti is meant to replace the current 650 Ti and is targeted to compete directly with AMD's Radeon R7 260X video card. The 750 is also in the same 'block' and will be replacing the 650 Ti on the low-end, but is competing more directly with AMD's R7 260. MSRP for the new units is set at:

  • 750 Ti 2GB - $150
  • 750 Ti 1GB - $140 (select partners only)
  • 750 1GB - $120
  • TITAN Black - "Roughly the same as the Titan."

Most noteworthy is that the new cards see the introduction of nVidia's Maxwell architecture, the replacement for Kepler that's been on the roadmap for a number of years. Maxwell is primarily focused on increasing power-to-performance efficiency. NVidia states that their 1st Generation of Maxwell GPUs (GM107, shown on the 750 cards) will increase performance per core by 35% over Kepler, which had 192 CUDA cores assigned to a single block of logic. Kepler's Streaming Multiprocessor (SM) schedules traffic for 192 CUDA cores, whereas Maxwell breaks the SM into four Control Logic blocks, with each control logic handling 32 cores (instead of a single block managing 192).

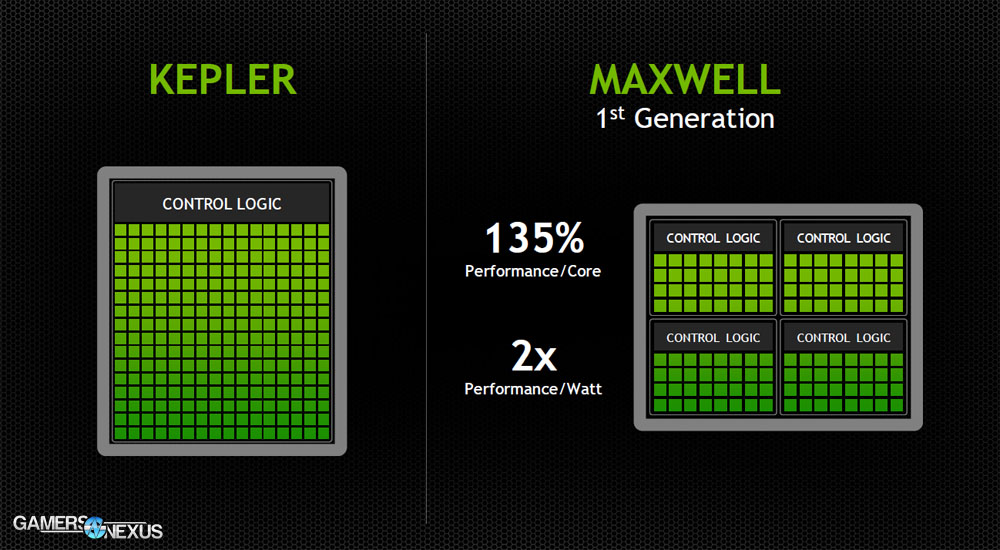

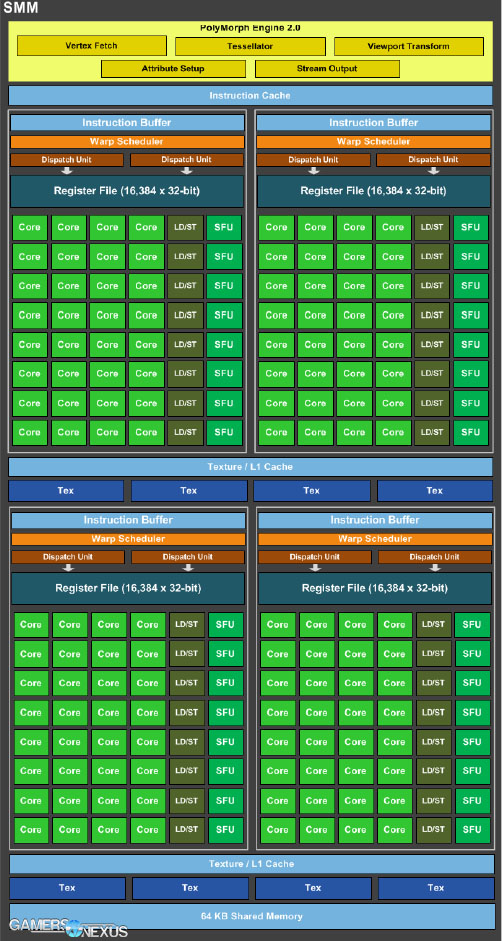

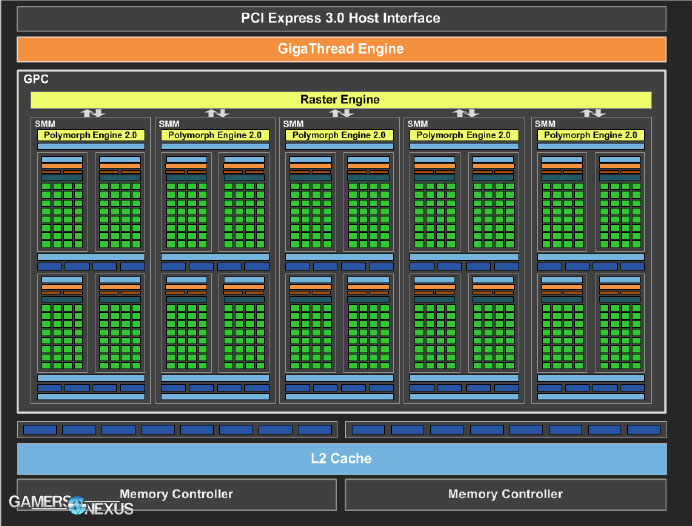

nvidia-maxwell-arch1 nvidia-maxwell-arch2 nvidia-maxwell-arch3

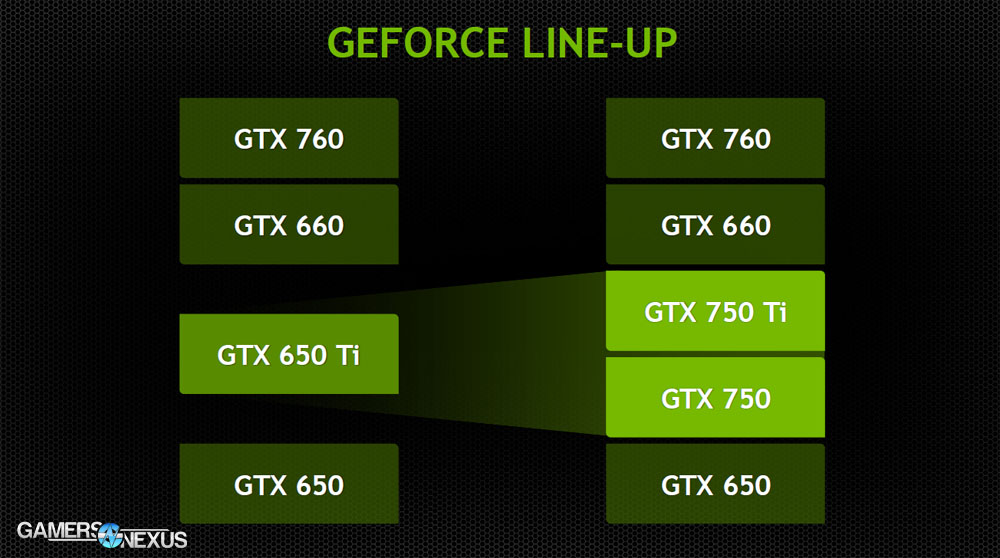

nvidia-geforce-lineup

This reduces load on individual GPU components and increases overall core utilization, meaning that even though the physical gains in CUDA cores aren't what we've seen in the past, the optimization means that software will be more likely to efficiently use what it's offered. The cores will spend less time idle and more time splitting load.

NVidia said in its press conference about Maxwell:

"We've been able to have more performance with [fewer] cores and more performance with less power. We've been able to do that with the way we schedule the workload into the GPU cores. We've split these cores into 4 separate groupings, [each] with its own control logic. Each block has 32 cores to schedule workload, so it's simpler and it's easier. This translates to increased utilization of these cores. Each of these cores spends less time being idle and more time doing real work. This translates to a 35% increase from each core; when you look at Maxwell with 128 cores and Kepler with 192, because of utilization and efficiency, you have almost the same amount of performance versus Kepler. Because we're able to get more performance with [fewer] cores, this translates to more performance with less power. We've been able to achieve over 2x in power efficiency."

To illustrate its progress, nVidia used Fermi (550 Ti) as a baseline (1x) on a performance-per-watt scale, showing a 4x increase in Maxwell over Fermi, or a 2x increase in Maxwell over Kepler (750 Ti vs. 550 Ti, 650 Ti).

If you're curious, the 550 Ti had a TDP of 116W, as opposed to the 750 Ti's 60W TDP. Because of the low power requirement of the new nVidia GPUs (TITAN Black notwithstanding, of course), neither the 750 nor 750 Ti require a dedicated power line from the PSU and can run off of power provided through the board. This has interesting implications for some computing applications. NVidia noted that while low-profile cards will not be immediately available, they will be on the market shortly and will likely be joined by passively-cooled versions of the 750 Ti.

If we do see a passively-cooled 750 Ti (or even 750, though to a lesser degree), it'd be the quietest, most powerful video card on the market at the price. The ideal use case scenario would likely be an HTPC or Steam Machine of some kind, where living room silence is desirable and absolute-max game settings may not be required.

From what benchmarking and nVidia show us, it looks like the 750 Ti will push medium-to-high settings on most games, depending on the game. From what we've seen of the specs, it is unlikely that our site would recommend the 750 (non-Ti) for gaming builds, as the 2GB 750 Ti will offer significantly better performance going forward. This was revealed when benchmarking Titanfall, where we saw a large performance impact from video memory capacity. I'll be following-up on Titanfall benchmarking with the 750 when both are available.

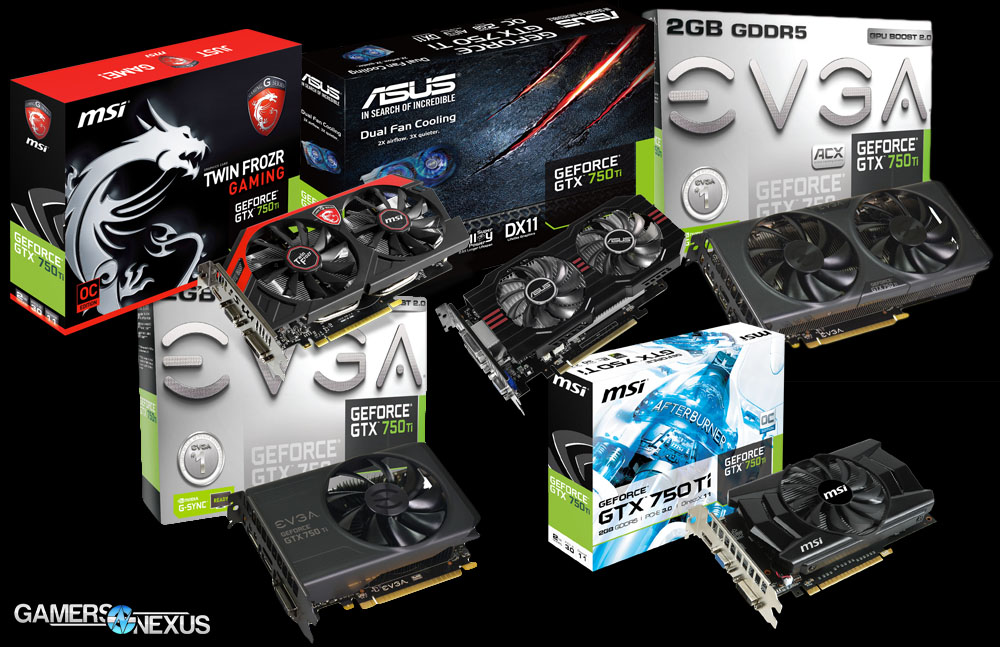

board-partners-750ti

Regardless, with either video card, you're sitting at lower than 75W TDP -- bundle this with almost any modern CPU/APU (FX-9000 notwithstanding) and you can run a 300W PSU in a mini-ITX box that uses partial passive cooling. The 750 Ti should be able to push 19x10 resolution consistently at medium/high settings.

The 750 Ti features two 64-bit memory controllers to produce a 128-bit memory bus width and can be outfitted with 1GB or 2GB of memory, though we'd always recommend the $10-$20 bump for 2GB. It also continues use of Boost 2.0, meaning you'll have reasonable voltage control and OC options given the right software and aftermarket solution. NVidia notes that they've managed to overclock the reference card  from 1085MHz BCLK to 1271MHz "and beyond" by using partner OC tools.

ShadowPlay is natively supported, as with Kepler, and has a codec built into the chip to help manage the processing and encoding.

The GTX 750 is similar to the 750 Ti in its clock speeds and board variety among manufacturers, but is slightly down-classed in its GPU and memory components. NVidia sees the GTX 750 as an upgrade path for the same users who originally purchased the GTS 450, GT 640, or other similar cards (3x the performance and half the power consumption).

Finally, the GTX Titan Black is an update of the original Titan; the Black edition runs nVidia's GK180 "Atlas" chip that's found in the 780 Ti and still supports full-speed double-precision. This makes it an ideal card for developers who require double-precision calculations for intensive simulations, but as with the Titan, it is inadvisable for gaming machines as the 780 Ti will produce the same gaming performance at a lower price. You'd have to disable double-precision for gaming anyway, so might as well save the money as that's the most expensive differentiator in this GPU.

The Titan Black still ships with a 6GB frame buffer and now has 2880 CUDA cores.

NVidia GTX 750 & 750 Ti vs. R7 260 & R7 260X - Internal Benchmarks

The following benchmarks were performed on nVidia's test system (i7-4770K @ 3.5GHz; 1920x1080; medium settings) and presented to the press. Read these benchmarks with a grain of salt. We have video cards on the way from nVidia and will be testing them in a series of modern games, so be sure to keep an eye on our twitter / facebook / YouTube accounts for those benchmarks.

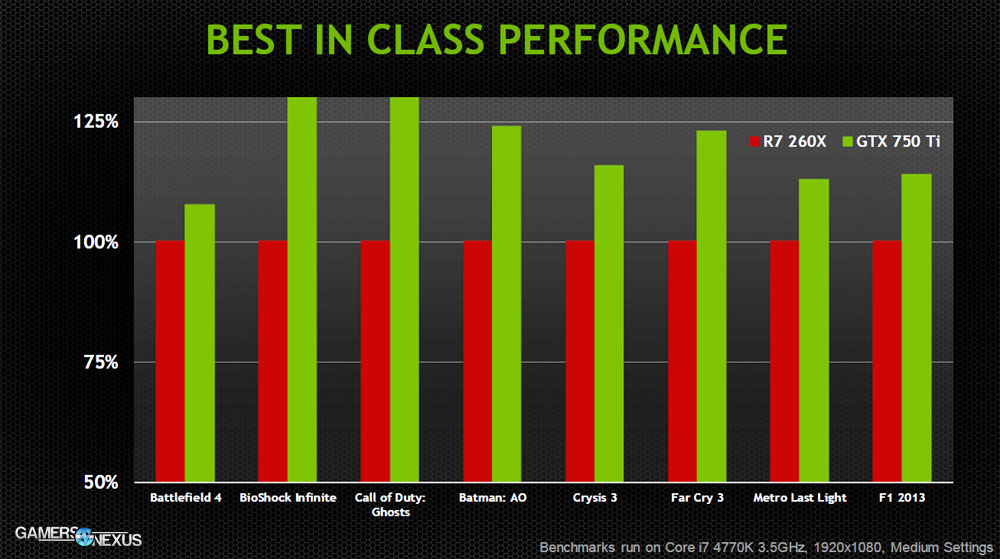

nvidia-gtx750ti-benchmark

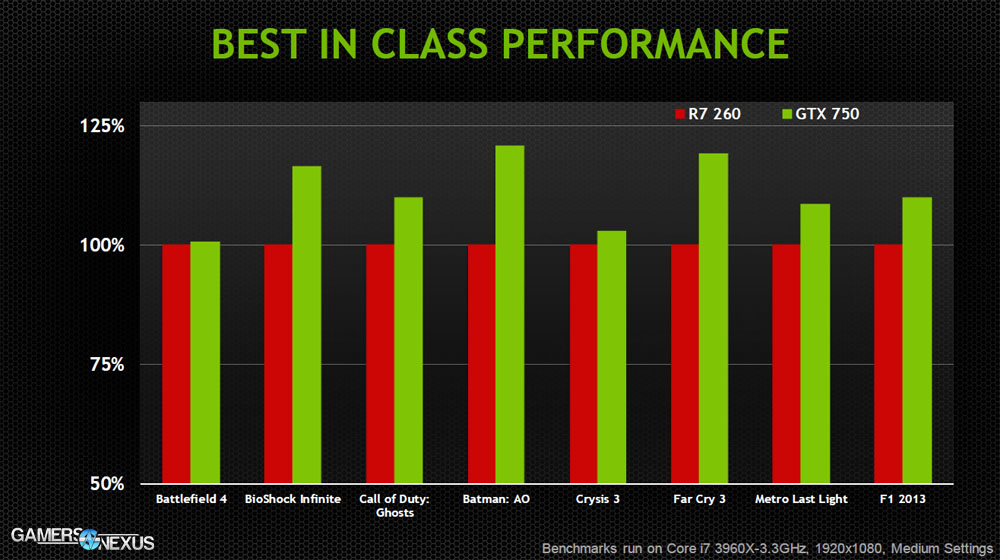

nvidia-gtx750-benchmark

Let us know if you have any questions about either of these video cards or the Titan Black, we'll do our best to answer with more details.

- Steve "Lelldorianx" Burke.
